Maintex 12V 60W 60rpm 63mm Worm Gear Motor

Maintex 12V 60W 60rpm 63mm Worm Gear Motor

Get Latest Price

Payment Type:: T/T, Paypal

Incoterm:: FOB, EXW

Min. Order:: 2000 Bag/Bags

Min. Order:: 2000 Bag/Bags

Delivery Time:: 15 Days

Transportation:: Ocean, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000
Supply Ability:	100000
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	ROHS
HS Code:	8501101000
Transportation:	Ocean,Air
Port:	Shenzhen

Product Description

Maintex Hot Selling 12V 60W 60Rpm 63Mm Worm Gear Motor For Lawn Mowers

The geared motor is an integrated body of the reducer and the motor. Such an integrated body is also commonly referred to as a gear motor or a geared motor.

The Gear Motor can be divided into Gear Reduction Motor, Geared Stepper Motor, Brushless Gear Motor, Carbon Brush Gear Motor and other types.

Typical application areas: Electric drying racks, electric curtains, sole cleaning machines.

Parameters:

MODEL	ITEMS	SPEC
ZD63R-1260-60	Driving Voltage	12VDC
	Output Power	60W
	No-load Speed	60±5rpm
	No-load Current	≤1.5A
	Load Speed	50±5rpm
	Load Current	≤6A
	Peak Torque	≥8N·m
	Reduction ratio	1:60
	Length	85mm
	Diameter	63mm

ZD63 series:

Product type	Voltage (VDC)	Power (W)	No-load speed (RPM)	No-load Current (A)	load speed (RPM)	Load current (A)	load torque (N.m)	Reduction ratio	length (mm)	Outer diameter (mm)
ZD63R-1260-60	12	60	60±5	≤1.5	50±5	≤6.0	≥8	1:60	85	63
ZD63R-1280-160	12	80	160	≤1.6	140±10	≤7.0	≥3	1:24	85	63
ZD63R-2410-6	24	10	6±1	≤0.3	4±1	≤1.5	≥2	1:75	85	63
ZD63R-2415-15	24	15	15±2	≤0.5	12±2	≤2.0	≥4	1:75	85	63
ZD63R-2445-180	24	45	180±5	≤1.2	150±5	≤4.0	≥3.5	1:20	85	63
ZD63R-2480-320	24	80	320	≤1.8	250±25	≤6.0	≥6	1:15	85	63
ZD63R-2480-250	24	80	250	≤1.8	200±20	≤6.0	≥5	1:15	85	63
ZD63R-2480-160	24	80	160	≤1.2	140±10	≤5.0	≥4	1:24	85	63
ZD63R-2480-100	24	80	100	≤1.8	80±5	≤7.5	≥8	1:60	85	63
ZD63R-2480-50	24	80	50±5	≤1.2	45±5	≤4.5	≥6.0	1:60	85	63
ZD63R-2480-30	24	80	33±3	≤0.8	25±3	≤4.8	≥8	1:68	85	63
ZD63R-3680-40	36	80	40±5	≤1.0	32±3	≤4.0	≥6	1:60	85	63
ZD63R-4880-30	48	80	33±3	≤0.5	25±5	≤3.0	≥8	1:68	85	63
ZD63R-11080-60	110	80	60±6	≤03	52±5	≤1	≥8	1:60	85	63
ZD63R-22080-400	220	80	400	≤0.4	320±40	≤0.8	≥6	1:15	85	63
ZD63R-22080-30	220	80	30±3	≤0.2	25±2	≤0.5	≥7	1:60	85	63

Parameters can be customized according to your actual demands, for detailed informations please contact with us or leave a message.

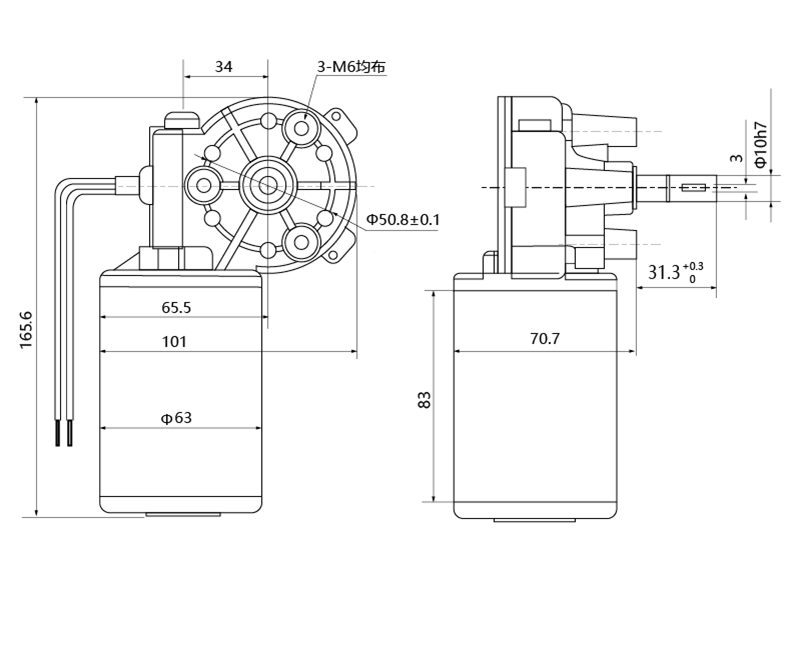

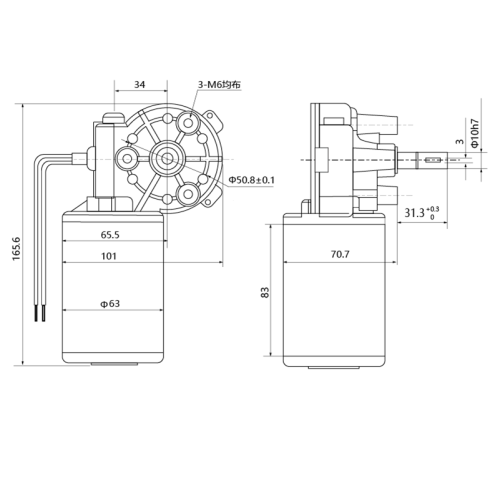

Drawing:

Applications of Gear Motor

• Smart homes

• Car drives
• Robot drives
• E-commerce logistics warehouses
• Precision instruments
• Industrial automation equipments
• Electronic products
• Precision machineries

• Electric lifting equipments

• Agricultural seeders

• Electric garages

• Car electric shutters

• Canvas machineries

• Household appliances

• Automatic hoe machines

• Bread machines

• Putter equipments

• Automatic oil press machinces

• Cooking machines

• Electric drying racks

• Electric curtains

• Sole cleaning machines

• Sweeping robots

• Oil pumps

• Air pumps

• Water pumps

All characteristics above are customizable, if you want Worm Gear Motor, Stepper Motor, Brushless DC Motor, Brush Motor and other motors' OEM / ODM service, please contact us for further information.

brushless motor brushless dc motor stepper motor
