Maintex 24V Brushed Worm Gear Motor

Get Latest Price

Payment Type:: T/T, Paypal

Incoterm:: FOB, EXW

Min. Order:: 2000 Bag/Bags

Min. Order:: 2000 Bag/Bags

Delivery Time:: 15 Days

Transportation:: Ocean, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000
Supply Ability:	100000
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	ROHS
HS Code:	8501101000
Transportation:	Ocean,Air
Port:	Shenzhen

Product Description

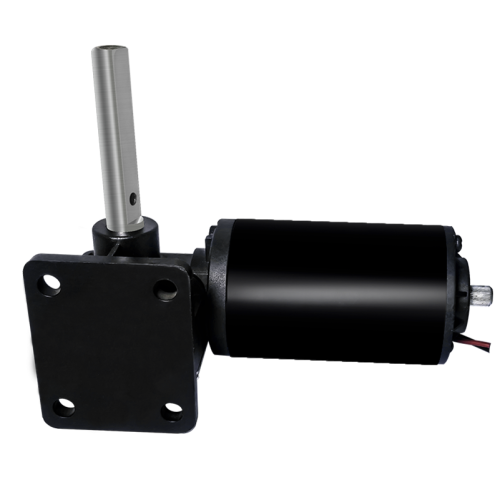

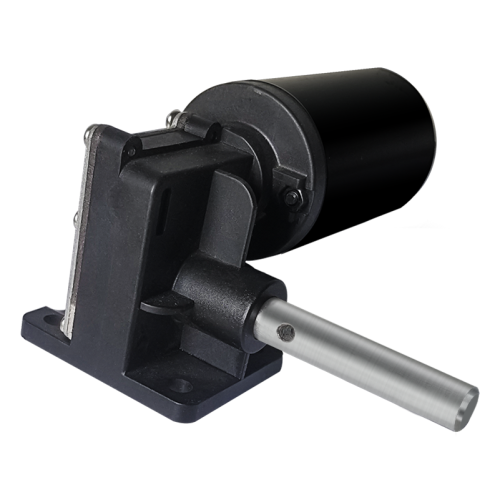

Maintex Customized 24V Brushed Gear Gear Motor For Sole Cleaning Machines

The geared motor is an integrated body of the reducer and the motor. Such an integrated body is also commonly referred to as a gear motor or a geared motor.

The Gear Motor can be divided into Gear Reduction Motor, Geared Stepper Motor, Brushless Gear Motor, Carbon Brush Gear Motor and other types.

Typical application areas: Electric drying racks, electric curtains, sole cleaning machines.

Parameters:

MODEL	ITEMS	SPEC
ZD52-2440-48	Driving Voltage	24VDC
	Output Power	40W
	No-load Speed	48±5rpm
	No-load Current	≤0.8A
	Load Speed	38±5rpm
	Load Current	≤0.4A
	Peak Torque	≥5N·m
	Reduction ratio	1:62
	Length	76mm
	Diameter	52mm

ZD52 series:

Product type	Voltage (VDC)	Power (W)	No-load speed (RPM)	No-load Current (A)	load speed (RPM)	Load current (A)	load torque (N.m)	Reduction ratio	length (mm)	Outer diameter (mm)
ZD52-22040-48	220	40	48±5	≤0.2	38±5	≤0.5	≥5	1:62	76	52
ZD52-2440-48	24	40	48±5	≤0.8	38±5	≤0.4	≥5	1:62	76	52

Parameters can be customized according to your actual demands, for detailed informations please contact with us or leave a message.

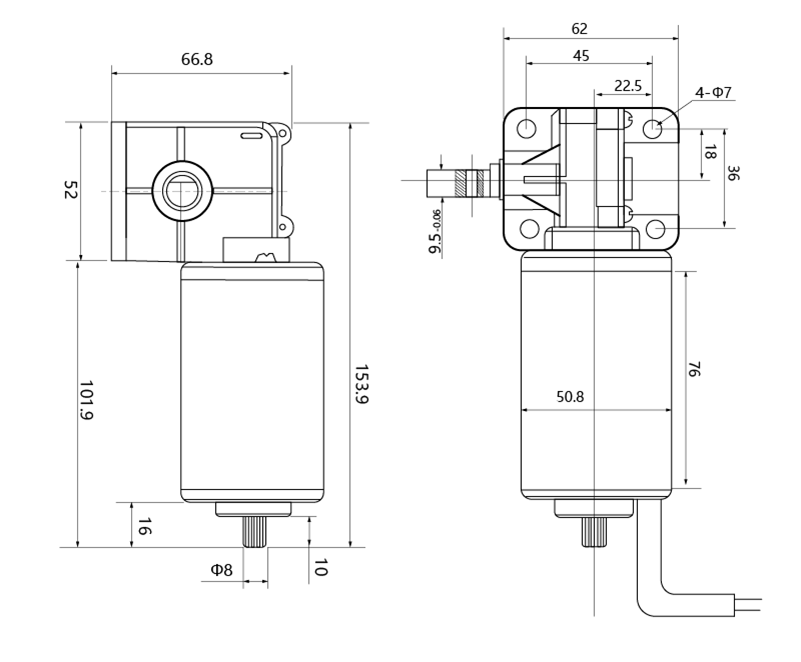

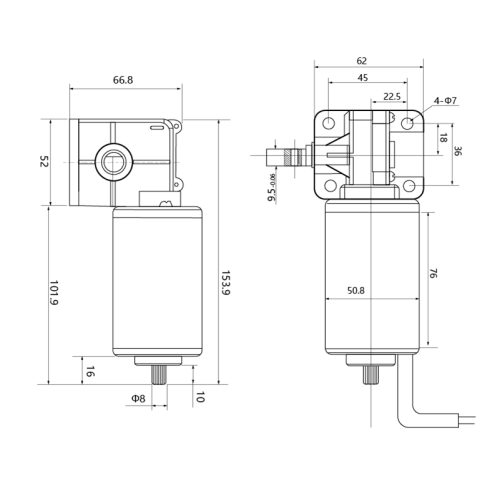

Drawing:

Applications of Gear Motor

• Smart homes

• Car drives
• Robot drives
• E-commerce logistics warehouses
• Precision instruments
• Industrial automation equipments
• Electronic products
• Precision machineries

• Electric lifting equipments

• Agricultural seeders

• Electric garages

• Car electric shutters

• Canvas machineries

• Household appliances

• Automatic hoe machines

• Bread machines

• Putter equipments

• Automatic oil press machinces

• Cooking machines

• Electric drying racks

• Electric curtains

• Sole cleaning machines

• Sweeping robots

• Oil pumps

• Air pumps

• Water pumps

All characteristics above are customizable, if you want Worm Gear Motor, Stepper Motor, Brushless DC Motor, Brush Motor and other motors' OEM / ODM service, please contact us for further information.
