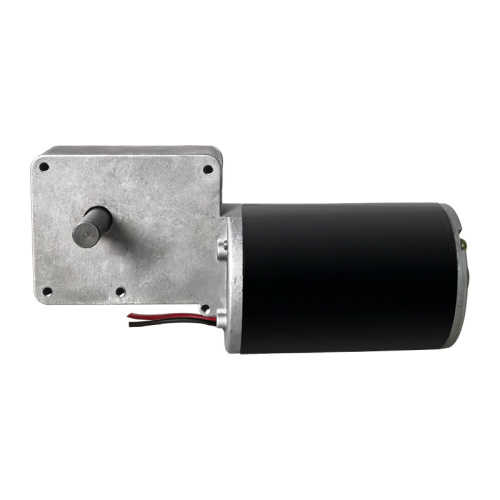

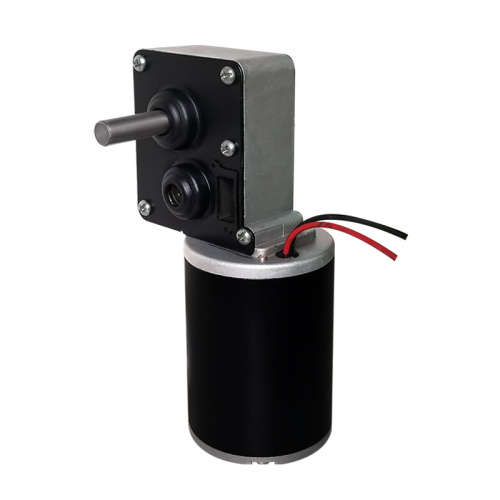

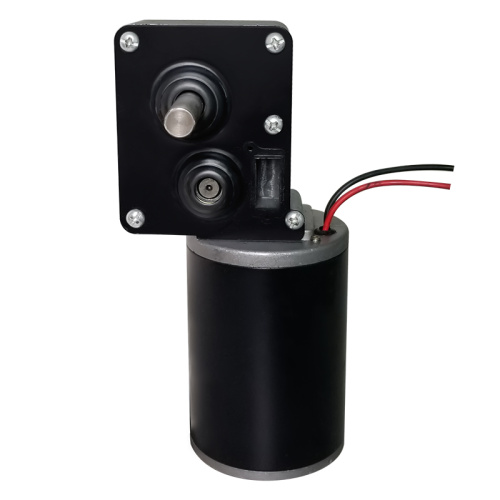

12V Electric Motor with Gearbox for Garage Door is a type of geared motor.

The geared motor is an integrated body of the reducer and the motor. Such an integrated body is also commonly referred to as a gear motor or a geared motor.

The Gear Motor can be divided into Gear Reduction Motor, Geared Stepper Motor, Brushless Gear Motor, Carbon Brush Gear Motor and other types.

ZD76SF-1260-15 DC Gear Motor Parameters

MODEL	ITEMS	SPEC
ZD76SF-1260-15	Driving Voltage	12VDC
	Output Power	60W
	No-load Speed	15±2rpm
	No-load Current	≤1.5A
	Load Speed	12±2rpm
	Load Current	≤4.5A
	Peak Torque	≥15N·m
	Reduction ratio	1:167
	Length	97mm
	Diameter	76mm

Drawing of ZD76SF-1260-15 DC Gear Motor

Applications of Gear Motor

• Smart homes

• Car drives
• Robot drives
• E-commerce logistics warehouses
• Precision instruments
• Industrial automation equipments
• Electronic products
• Precision machineries

• Electric lifting equipments

• Agricultural seeders

• Electric garages

• Car electric shutters

• Canvas machineries

• Household appliances

• Automatic hoe machines

• Bread machines

• Putter equipments

• Automatic oil press machinces

• Cooking machines

• Electric drying racks

• Electric curtains

• Sole cleaning machines

• Sweeping robots

• Oil pumps

• Air pumps

• Water pumps

DC motor stepping motor DC motor

All characteristics above are customizable, if you want Worm Gear Motor, Stepper Motor, Brushless DC Motor, Brush Motor, Barrier Gate, Treadmill motor and other motors' OEM / ODM service, please contact us for further information.
