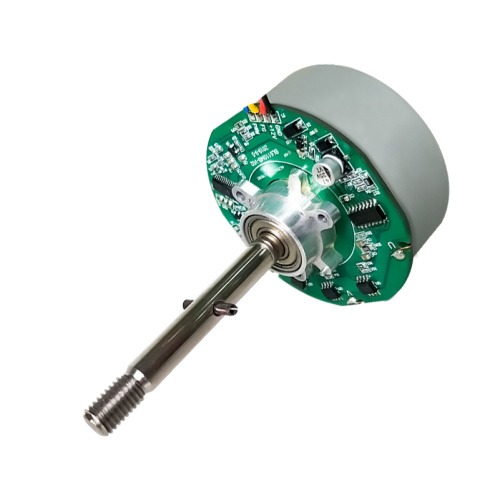

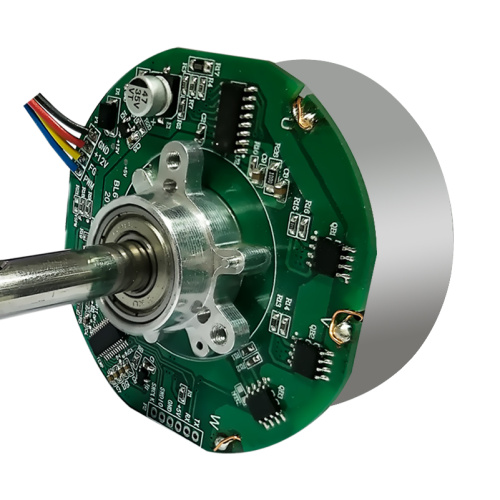

MAINTEX BL6110MB-001 Brushless Motor for Fan or Blower is a type of brushless DC motor.
The brushless DC motor consists of a motor body and a driver, and is a typical mechatronic product. The driver is composed of power electronics and integrated circuits, and its functions are: receiving start, stop, and brake signals of the motor to control start, stop, and brake of the motor; accepting position sensor signals and forward and reverse signals for controlling the inverse The power bridges of the variable bridges are turned on and off to generate continuous torque; the speed command and the speed feedback signal are accepted to control and adjust the speed; provide protection and display, etc.

MAINTEX BL6110MB-001 Brushless Motor for Fan or Blower Parameters

MODEL	ITEMS	SPEC
BL6110MB-001 for Fan / Blower	Driving Voltage	24VDC
	Number of Gears Range	1-26 gears
	Peak current	4A
	Gear	1-26
	1st stage no load current	≤100
	No-load return speed	440±50rpm
	Load current	≤150mA
	Load return speed	340±50rpm
	26 rated load	12 inch wind leaf 8.33N.mm 850gf.cm
	No load current	≤150mA
	Weight	0.286kg
	Diameter	61.4mm
	Length	104.3mm

Drawing of MAINTEX BL6110MB-001 Brushless Motor for Fan or Blower

Applications of MAINTEX BL6110MB-001 Brushless Motor for Fan or Blower
• Drone
• Treadmill
• Fascia guns
• Electric massagers
• Air conditioners
• Robot vacuum cleaner
• Power reclining sofas
• Juicer
• Dishwashers
• Washing machines
• Fan
• Small home appliances
• Chain saws
• Trimmers
• Leaf blowers
• Hedgetrimmer
• Lawn mowers
• Secateurs
• Olive shaker
• Pole pruner
• Concrete cutter
• Metal cuter
• Circular saw
• Angle grinder
• Components
• Snow Thrower
• Mulcher
• Grass Cutter
• Lown Mower
• Electric Chain Saw
• Robots
