Basic Info

Product Description

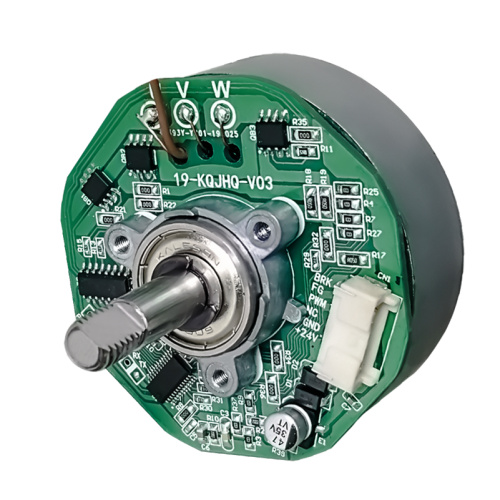

MAINTEX BL6208-01 Brushless Motor for Air Purifiers is a type of brushless DC motor.
The brushless DC motor consists of a motor body and a driver, and is a typical mechatronic product. The driver is composed of power electronics and integrated circuits, and its functions are: receiving start, stop, and brake signals of the motor to control start, stop, and brake of the motor; accepting position sensor signals and forward and reverse signals for controlling the inverse The power bridges of the variable bridges are turned on and off to generate continuous torque; the speed command and the speed feedback signal are accepted to control and adjust the speed; provide protection and display, etc.

MAINTEX BL6208-01 Brushless Motor for Air Purifiers Parameters

MODEL	ITEMS	SPEC
BL6208-01 for Air Purifiers	Driving Voltage	24VDC
	Voltage Range	22.8~25.2VDC
	Peak current	2A
	No-load Speed	2600±10%rpm
	Rated Speed	2600±10%rpm
	Speed Range	500~2600rpm
	Rated Torque	0.081N·m
	Phase number	3 phases
	Number of Poles	10 poles
	Direction of Rotation	CCW
	Weight	0.286kg
	Diameter	61.4mm
	Length	63.6mm

Drawing of MAINTEX BL6208-01 Brushless Motor for Air Purifiers

Applications of MAINTEX BL6208-01 Brushless Motor for Air Purifiers
• Drone
• Treadmill
• Fascia guns
• Electric massagers
• Air conditioners
• Robot vacuum cleaner
• Power reclining sofas
• Juicer
• Dishwashers
• Washing machines
• Fan
• Small home appliances
• Chain saws
• Trimmers
• Leaf blowers
• Hedgetrimmer
• Lawn mowers
• Secateurs
• Olive shaker
• Pole pruner
• Concrete cutter
• Metal cuter
• Circular saw
• Angle grinder
• Components
• Snow Thrower
• Mulcher
• Grass Cutter
• Lown Mower
• Electric Chain Saw
• Robots

OEM Service
