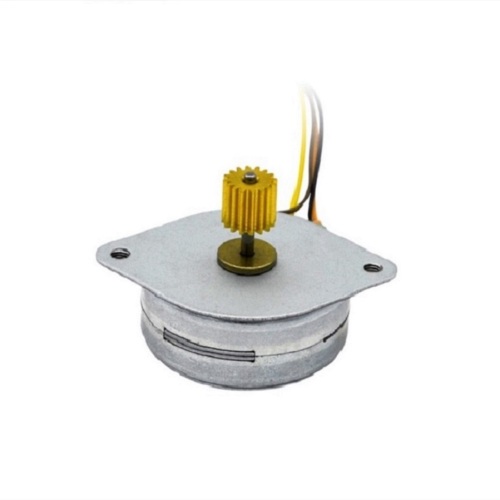

Contact Now35BY212 4 Wire Bipolar Stepper Motor
Main Performance of 35BY212 4 Wire Bipolar Stepper Motor
Diameter: 35 mm
Step Angle: 7.5°
Voltage: 24V, can be customized.
Phase: 2
Rotation: CW/CCW
Excitation: Bipolar, 2-2
Parameter of 35BY212 4 Wire Bipolar Stepper Motor
Model
Items
SPEC
35BY212
Resistance
10ohm ±10%
Inductance
14 +/- 20 mh
Pull-in frequency
700Hz
Pull-out
frequency
1050Hz
Holding torque
400 gf.cm
Application
Printer , Office Equipment,
Electric Scale ...
Insulation class
F
Rotation
CW
OEM
Accept

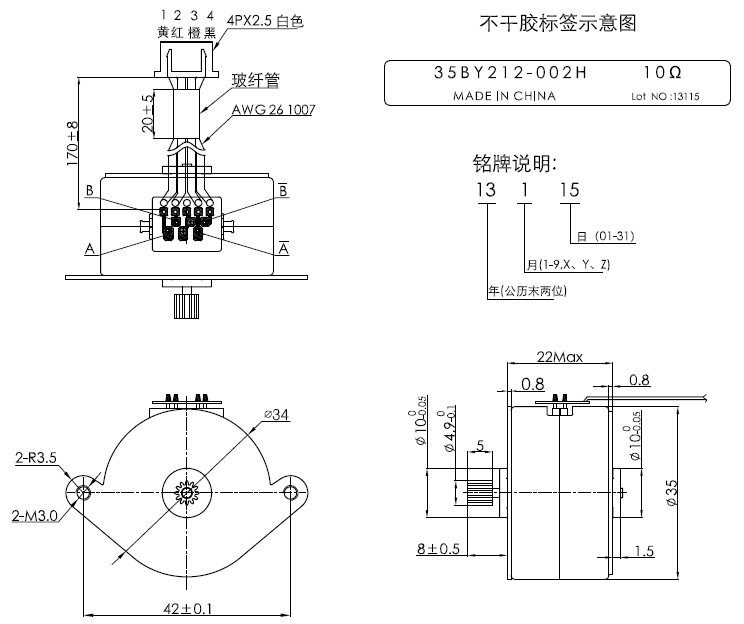

Drawing of 35BY212 4 Wire Bipolar Stepper Motor
