Barrier Accessories 24 V Servo Dc Motor
- Payment Type:
- T/T, Paypal
- Incoterm:
- FOB, EXW
- Min. Order:
- 10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Air, courier
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 100000 |
| Supply Ability: | 100000 |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,EXW |
| HS Code: | 853080 |
| Transportation: | Ocean,Air,courier |
| Port: | Shenzhen |
Two output ports: two output ports can be configurated flexibly. Output port 1: Can be set
to illegal lift output. When not setting illegal lift, it can be set to any
combination outputs of lift limit, lift running, drop running and drop limit.
Output port 2: Can be set to illegal lift alarm. When not setting illegal
lift alarm, it can be set to any combination outputs of lift limit, lift
running, drop running and drop limit. Each output port can control the load
with a maximum voltage of 50V and a maximum current of 1A.
General Specification Of Barrier Accessories 24 V Servo Dc Motor:
| Rated Voltage | 30V DC |
| Rated power | 250W |
| Rated torque | 60N.m |
| Maximum torque | 70N.m |
| Weight | 4.5kg |
| Insulation class | F |
| Barrier opening speed | 0.5~4s |
| Barrier closing speed | 2~4s |
| Shaft diameter | 24mm |
| Working temperature | -40℃~80℃ |
| Applicable boom length | 1~4m |
Packing Of Barrier Accessories 24 V Servo Dc Motor:

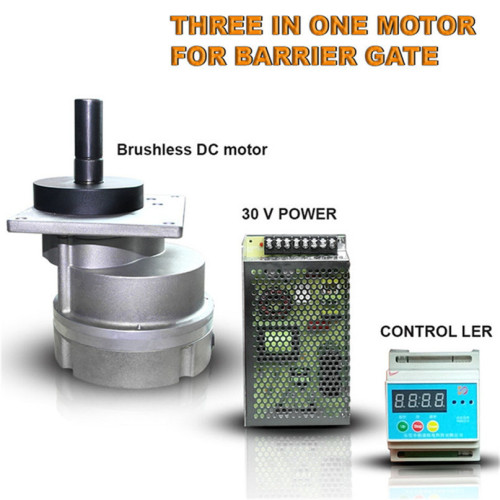

Standard packing : 1set=motor+controller+power supply
Additional spare part: Bluetooth for connecting mobile APP can be choiced according to your demands.
Feature Of Barrier Accessories 24 V Servo Dc Motor:
1.No spring and no linkage.(Big power can driver directly)
2.No worm and gear
3.The boom barrier can be installed in both left and right direction.
4.Small size(1/3 of traditional one)
5.All parameters can be set by mobile App.
6.Opening speed:0.5s~4s, closing speed:2s~4s
7.Rebound against obstacles
8.The boom can be lift if power off
9. Queuing and fleet function
Drawing And Introduction Of Barrier Accessories 24 V Servo Dc Motor:
