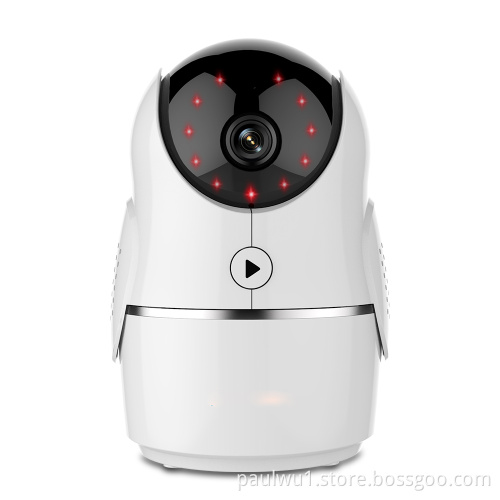

IH01 Home Security CCTV Camera From Dosyu

System
Processor : Hisilicon processor HI3518E V200, built-in ARM926 at Max.540MHz and a high-speed video co-processor.
DRAM: DDR2 512Mb
Flash: 16MB
OS: Embedded Linux OS
System security: Registed user authority management
Online users: 3
DDNS: NO
Control protocol: P2P protocol
UPNP: NO

Image Sensor
Sensor chip: OV2710
Type: 1/2.7" CMOS Sensor
Display Resolution: 2.0MP, 1920 x1080(1080P)

Lens and IR-LED
Lens: FNO: 2.5; FL:3.6mm;
Interface Type: M12
Focus: Fixed
View Angle: 55°
Min. Illumination: Low illumination, 1.0Lux in day; Min to 0.2Lux with IR-LED On
IR-LED: 10 IR-LED for Night Vision use
Night Vision: IR-CUT double filter with day&night auto switch

Audio
Input/Output: Built in Microphone and 8Ω/1W speaker;
Audio Compression: G.711, ADPCM/32kbps
Digital noise reduction: 3D digital noise

Video
Image Compression : H.264
Light Frequency: 50Hz, 60Hz
Image Resolution: 2.0MP, 1920 x 1080(1080P)
Image frame rate: 1~25fps
View : H.264 single streaming
Image adjust: NO
White balance: Automatic
Effective Night Vision: Supported, IR-Cut, Night visibility up to 8 meters
Infrared radiation distance: 6 meters
Infrared mode: Automatic

Network
Ethernet Interface: Built-in 10/100Mbps, Auto MDI/MDIX, RJ-45
Supported Protocol: HTTP/DHCP/IP/TCP/UDP
Wireless Standard: WIFI(IEEE802.11b/g/n)
WIFI Data Rate: 802.11b: 11Mbps(Max.)  802.11g: 54Mbps(Max.)  802.11n: 150Mbps(Max.)
WIFI Frequency channel : 2.4G (NOT support 5G)
WIFI Channel bandwidth: Support 20/40MHz
General functions: Reverse, capture, mobile alarm,password protection,video playback,
remote control, two-way intercom
Support IP address: Dynamic IP address
Wireless Security: WPA2 Encryption
Intelligent alarm: NO

Mobile view
mobile phone type: iPhone,Android phone
Video playback: Four level Clarity for various network speed: MAX,High,Normal,Low
Mobile alarm: YES(message and picture)
Piture capture: YES
Reverse: YES(Horizontal & Vertical )
Two-way intercom: YES
video record in mobile: YES
recorded video playback: mobile and IPC TF card recorded video playback
PTZ control: Horizontal:355° & Vertical: 55°
Full screen view: YES
multi-view: NO

TF CARD video Record
Record setting: ON/OFF
Record level select: FHD、HD、SD、Smooth
Record days/hours:
Depend on Clarity select and real scene.
Example of Hours for 32GB CARD:
FHD(1280x720) = 2 Days
HD = 4 Days
SD = 6 Days
Smooth = 8 Days"
Record file format: AVI
Record video playback: By mobile APP，PC video tool or normal video device

Intelligent alarm
Motion Detection: YES
Video is lost, the network is disconnected, and the power is disconnected: NO
Alarm inform: Alarm message with picture

Hardware Interface
Memory: TF Card(Micro SD CARD),8GB/16GB/32GB/64GB
Power Interface:
DC 5V/2.0A (EU,US,UK adapter or other types optional)
Power consumption:
normal 3.2W;
IR-LED on 3.5W
PTZ working MAX 7W"
Audio Input/Output : Built in Microphone and Speaker
Reset key Press: 5 Seconds, then reset to factory setting.
Wireless Interface: WIFI antenna
WLAN: RJ-45

Software Upgrade
IPC device software: YES(by mobiel APP upgrade)
Mobile APP: Auto upgrade by user

PTZ
Pan/Tilt Angle: Horizontal:355°& Vertical: 55°
Pan/Tilt Cruise: Horizantal & Vertical
Pan/Tilt Position Store: Store 6 positions, support goto the position
