TM037WDHT01 3.7 Inch Tianma TFT-LCD
-
$25.001-99 Piece/Pieces
-
$20.00≥100 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 pcs |
| Supply Ability: | 10000 pcs |
| Payment Type: | T/T,Paypal |
| Incoterm: | EXW,FOB |
| Certificate: | CE, ROHS |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen |
This Tianma TFT-LCD is a 3.7 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen.TM037WDHT01 supports display 480(RGB)×640 (VGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 56.16(W)×74.88(H) mm, outline size of 65(W)×89(H)×3.2(D) mm, viewing area size of 59.06(W)×77.78(H) mm, with surface treament of Hard coating, net weight of 35.0g (Typ.). As a ECB, Normally White, Transflective LCM product, TM037WDHT01 can provides 200 cd/m² display brightness 150:1 transimissive contrast ratio, 8:1 (Typ.) reflective contrast ratio, 50/55/45/55 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 35% (NTSC). This product adopted 6S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. TM037WDHT01 utilizes CMOS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 39 pins FPC with power supply voltage of 1.8/3.0V (Typ.)(VCCIO/VDD).
We are able to offer AD board for this display to support VGA video input.
|
Model P/N |
TM037WDHT01 |
|
Brand |
TIANMA |
|
Diagonal Size |
3.7" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
480(RGB)×640, VGA 217PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Active Area |
56.16(W)×74.88(H) mm |
|
Bezel Opening |
59.06(W)×77.78(H) mm |
|
Outline(mm) |
65 × 89 × 3.2 (H×V×D) |
|
Treatment |
Hard coating |
|
Luminance |
200 cd/m² (Typ.) |
|
Contrast Ratio |
150 : 1 (Typ.) (TM) 8:1 (Typ.) (RF) |
|
Viewing Angle |
50/55/45/55 (Typ.)(CR≥10) |
|
Response |
30 (Typ.)(Tr+Td) ms |
|
Good View at |
6 o'clock |
|
Work Mode |
ECB, Normally White, Transflective |
|
Color Depth |
262K 35% NTSC |
|
Backlight |
6S1P WLED , 50K hours , No Driver |
|
Mass |
35.0g (Typ.) |
|
Touchscreen |
Without |
|
Signal Type |
CMOS (1 ch, 6-bit) , 39 pins FPC |
|
Voltage Supply |
1.8/3.0V (Typ.)(VCCIO/VDD) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

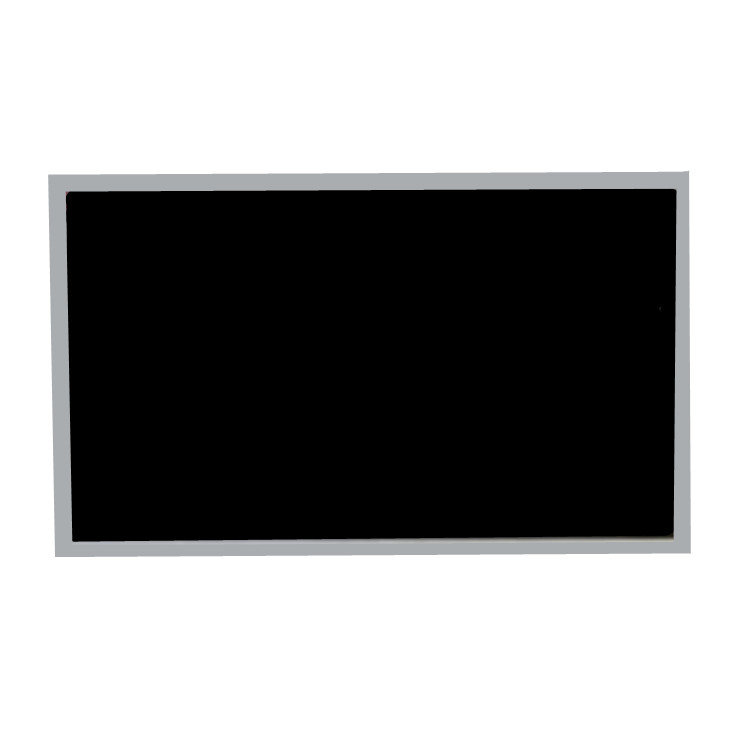

Product Picture:
