TM121TDSG04 TIANMA 12.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
TM121TDSG04 is a 12.1 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, With LED Driver, without touch screen. Tianma TFT-LCD is a 12.1 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Ver2.0 which was released out on 12 11 2017, TM121TDSG04 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 245.76(W)×184.32(H) mm, outline size of 260.5(W)×204(H)×8.9(D) mm, viewing area size of 249.0(W)×187.5(H) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 505g (Typ.). As a TN, Normally White, Transmissive LCM product, TM121TDSG04 can provides 600 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 3 o'clock , and response time of 16 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 55% (NTSC). This product adopted 8S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. TM121TDSG04 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
TM121TDSG04 |
|
Panel Brand |
TIANMA |
|
Panel Size |
12.1" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
1024(RGB)×768 , XGA |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
245.76(W)×184.32(H) mm |
|
Bezel Opening |
249.0(W)×187.5(H) mm |
|
Outline Size |
260.5(W)×204(H) ×8.9(D) mm |
|
Surface |
Glare (Haze 0%), Hard coating (3H) |
|
Brightness |
600 cd/m² (Typ.) |
|
Contrast Ratio |
700:1 (Typ.) (TM) |
|
Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Best View on |
3 o'clock |
|
Response Time |
16 (Typ.)(Tr+Td) |
|
Display Colors |
262K/16.7M 55% NTSC |
|
Lamp Type |
8S4P WLED , 50K hours , With LED Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Panel Weight |
505g (Typ.) |
|
Signal Interface |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

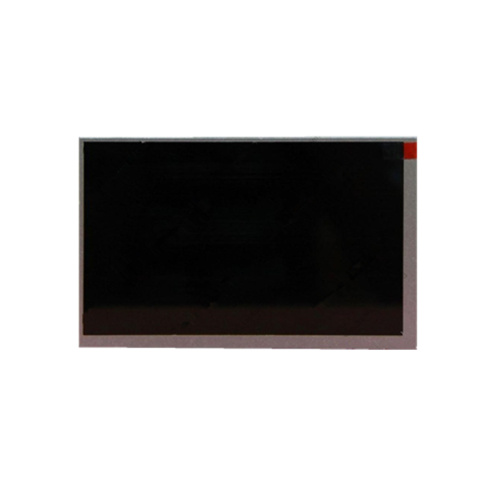

Product Picture:
