TM101JVHP01 is a 10.1 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, without backlight driver, touch screen PCAP. Tianma TFT-LCD is a 10.1 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Pre Ver1.0 which was released out on 4 24 2016, TM101JVHP01 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 244.5(W)×168.1(H)×6.95(D) mm, with surface treament of Hard coating (6H). As a SFT, Normally Black, Transmissive LCM product, TM101JVHP01 can provides 350 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 3S11P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. TM101JVHP01 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3/11/23/-7.0V (Typ.)(VDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model	TM101JVHP01
Brand	TIANMA
Diagonal Size	10.1 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	1280(RGB)×800 [WXGA]
Configuration	RGB Vertical Stripe
Active Area	216.96(H)×135.6(V) mm
Outline Dim.	244.5(H)×168.1(V) ×6.95(D) mm
Treatment	Hard coating (6H)
Luminance	350 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	SFT, Normally Black, Transmissive
Support Color	16.7M 50% NTSC
Light Source	WLED [3S11P] , 30K hours , W/O Driver
Frame Rate	60Hz
Touch Panel	PCAP
Interface Type	LVDS (1 ch, 8-bit) , 40 pins Connector
Power Supply	3.3/11/23/-7.0V (Typ.)(VDD/AVDD/VGH/VGL)
Environment	Operating Temperature: -10 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

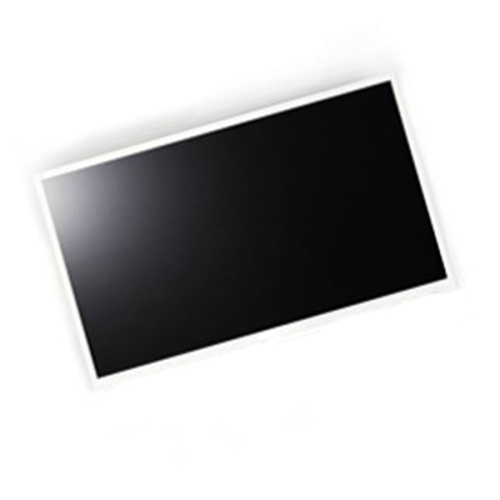

Product Picture:
