TM097QDSP01 TIANMA 9.7 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

TM097QDSP01 is a 9.7 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, without backlight driver, without touch screen. Tianma TFT-LCD is a 9.7 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. TM097QDSP01 supports display 1536(RGB)×2048 (QXGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 264 PPI. As for mechanical detail, it features active area of 147.456(W)×196.608(H) mm, outline size of 154.016(W)×207.83(H)×3.75(D) mm, with surface treament of Hard coating, net weight of 110g (Typ.). As a SFT, Normally Black, Transmissive LCM product, TM097QDSP01 can provides 460 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 6S6P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. TM097QDSP01 utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 61pins Connector with power supply voltage of 1.8/5.0/-5.0V (Typ.)(VDDI/AVDD/AVEE). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model	TM097QDSP01
Panel Brand	TIANMA
Panel Size	9.7"
Resolution	1536(RGB)×2048 , QXGA
Display Area	147.456(W)×196.608(H) mm
Outline Size	154.016(W)×207.83(H) ×3.75(D) mm
Brightness	460 cd/m² (Typ.)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	16.7M 72% NTSC
Frequency	60Hz
Weight	110g (Typ.)
Panel Type	a-Si TFT-LCD , LCM
Pixel Format	RGB Vertical Stripe
Surface	Hard coating
Contrast Ratio	1000:1 (Typ.) (TM)
Display Mode	SFT, Normally Black, Transmissive
Response Time	25 (Typ.)(Tr+Td)
Lamp Type	6S6P WLED , Without Driver
Touch Screen	Without
Signal Interface	MIPI (2 ch, 4 data lanes) , 61 pins Connector
Input Voltage	1.8/5.0/-5.0V (Typ.)(VDDI/AVDD/AVEE)
Environment	Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C

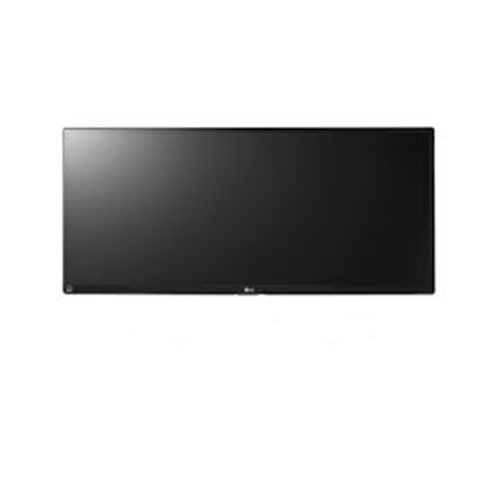

Product Picture:

TM097QDSP01
