TA055VGHM01-02 TIANMA 5.5inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
TA055VGHM01-02 is a 5.5 inch diagonal AM-OLED display screen product from TIANMA, it self emiting, touch screen On-Cell Touch. Tianma TFT-LCD is a 5.5 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. TA055VGHM01-02 supports display 1080(RGB)×1920 (FHD) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 401 PPI. As for mechanical detail, it features active area of 68.31(W)×121.44(H) mm, outline size of 70.01(W)×127.19(H) mm, with surface treament of Hard coating (3H). TA055VGHM01-02 can provides 350 cd/m² display brightness 10000:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 1 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (NTSC). This product emiting itself . It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
TA055VGHM01-02 |
|
Panel Brand |
TIANMA |
|
Panel Size |
5.5" |
|
Resolution |
1080(RGB)×1920 , FHD |
|
Display Area |
68.31(W)×121.44(H) mm |
|
Outline Size |
70.01(W)×127.19(H) mm |
|
Brightness |
350 cd/m² (Typ.) |
|
Viewing Angle |
80/80/80/80 (Min.)(CR≥10) |
|
Best View on |
Symmetry |
|
Display Colors |
16.7M 100% NTSC |
|
Frequency |
60Hz |
|
Panel Type |
AM-OLED , OLED |
|
Pixel Format |
RGB Vertical Stripe |
|
Surface |
Hard coating (3H) |
|
Contrast Ratio |
10000:1 (Min.) (TM) |
|
Response Time |
1 (Max.)(Tr+Td) |
|
Lamp Type |
self |
|
Touch Screen |
On-Cell Touch |
|
Driver IC |
COG Suggest RM67198G98 |
|
Input Voltage |
1.8/3.3/6.4/4.6/-3.5V (Typ.)(VDDI/VDD/AVDD/PVDD/PVEE) |
|
Environment |
Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |

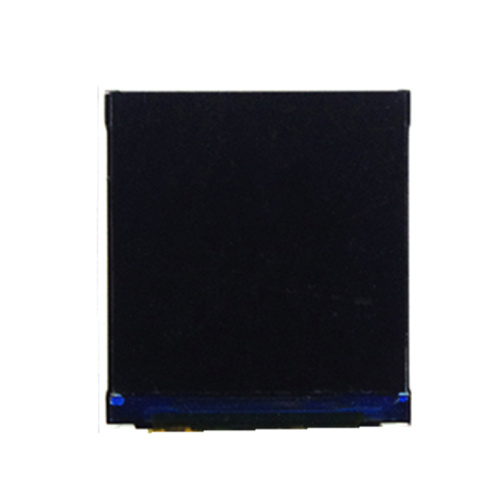

Product Picture:
