TA055JVHM02 TIANMA 5.5 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
TA055JVHM02 is a 5.5 inch diagonal AM-OLED display screen product from TIANMA, it self emiting, touch screen On-Cell Touch. Tianma TFT-LCD is a 5.5 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Ver1.2 which was released out on 12 9 2015, TA055JVHM02 supports display 720(RGB)×1280 (WXGA) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 268 PPI. As for mechanical detail, it features active area of 68.04(W)×120.96(H) mm, outline size of 72.48(W)×149.05(H) mm, net weight of TBD. TA055JVHM02 can provides 350 cd/m² display brightness 10000:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 1 (Typ.)(Ton+Toff) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (NTSC). This product emiting itself . TA055JVHM02 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 1.8/2.8/6.4/4.6V (Typ.)(VDDI/VDD/AVDD/PVDD). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
TA055JVHM02 |
|
Manufacturer |
TIANMA |
|
Screen Size |
5.5 inch |
|
Screen Type |
Assembly , AM-OLED |
|
Pixel Number |
720(RGB)×1280 (WXGA) |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
68.04 × 120.96 (H×V) |
|
Outline(mm) |
72.48 × 149.05 (H×V×D) |
|
Luminance |
350 cd/m² (Typ.) |
|
Contrast Ratio |
10000 : 1 (Min.) (TM) |
|
Viewing Angle |
80/80/80/80 (Min.)(CR≥10) |
|
Response |
1 (Typ.)(Ton+Toff) ms |
|
Good View at |
Symmetry |
|
Color Depth |
16.7M 100% NTSC |
|
Backlight |
self |
|
Mass |
TBD |
|
Refresh Rate |
60Hz |
|
Touchscreen |
On-Cell Touch |
|
Signal Type |
MIPI (4 data lanes) , 40 pins Connector |
|
Voltage Supply |
1.8/2.8/6.4/4.6V (Typ.)(VDDI/VDD/AVDD/PVDD) |
|
Max. Ratings |
Storage Temp.: -55 ~ 125 °C Operating Temp.: -40 ~ 85 °C |

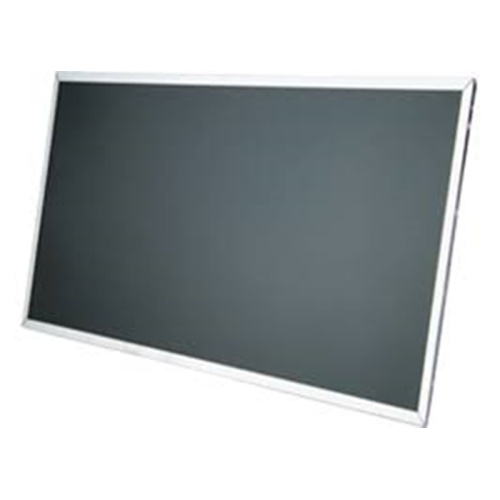

Product Picture:
