TM047NDH03 TIANMA 4.7 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

TM047NDH03 is a 4.7 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, without backlight driver, without touch screen. Tianma TFT-LCD is a 4.7 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Ver2.2 which was released out on 12 16 2009, TM047NDH03 supports display 480(RGB)×272 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 103.68(W)×58.752(H) mm, outline size of 114.3(W)×72.5(H) mm, with surface treament of Clear, Hard coating (3H), net weight of 60.0g. As a TN, Normally White, Transmissive LCM product, TM047NDH03 can provides 320 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 5S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. TM047NDH03 utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model	TM047NDH03
Brand	TIANMA
Diagonal Size	4.7 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	480(RGB)×272 [WQVGA]
Configuration	RGB Vertical Stripe
Active Area	103.68(H)×58.752(V) mm
Outline Dim.	114.3(H)×72.5(V) mm
Treatment	Clear, Hard coating (3H)
Luminance	320 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
View Direction	12 o'clock
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	70/70/60/70 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M 50% NTSC
Light Source	WLED [5S2P] , 20K hours , W/O Driver
Weight	60.0g
Frame Rate	60Hz
Touch Panel	Without
Interface Type	Parallel RGB (1 ch, 8-bit) , 40 pins FPC
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C

Product Picture:

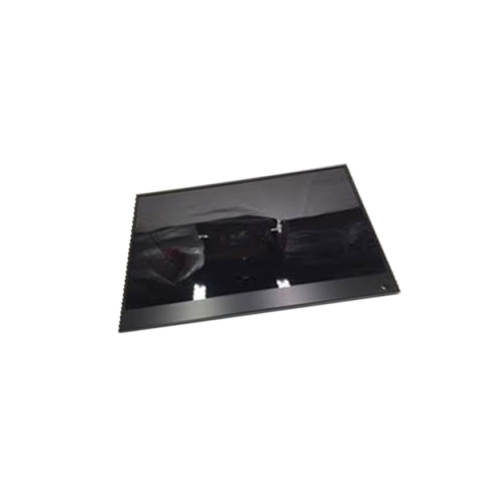

TM047NDH03
