TM035KDH03-79 TIANMA 3.5 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
TM035KDH03-79 is a 3.5 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, without backlight driver, without touch screen. Tianma TFT-LCD is a 3.5 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. TM035KDH03-79 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 70.08(W)×52.56(H) mm, outline size of 76.9(W)×63.9(H)×3.35(D) mm, viewing area size of 72.88(W)×55.36(H) mm, with surface treament of Antiglare, net weight of 30.0g (Typ.). As a TN, Normally White, Transmissive LCM product, TM035KDH03-79 can provides 300 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 53% (NTSC). This product adopted 6S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. TM035KDH03-79 utilizes Digital RGB (8/24-bit) + SPI, CCIR601/656 as it's signal inputting systerm, which connected by 54 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
Model
TM035KDH03-79
Brand
TIANMA
Diagonal Size
3.5 inch
Type
a-Si TFT-LCD, LCM
Pixel Format
320(RGB)×240 [QVGA]
Configuration
RGB Vertical Stripe
Active Area
70.08(H)×52.56(V) mm
Outline Dim.
76.9(H)×63.9(V) ×3.35(D) mm
Bezel Area
72.88(H)×55.36(V) mm
Treatment
Antiglare
Luminance
300 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (TM)
View Direction
12 o'clock
Response Time
20 (Typ.)(Tr+Td)
Viewing Angle
70/70/60/70 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Support Color
16.7M 53% NTSC
Light Source
WLED [6S1P] , 20K hours , W/O Driver
Weight
30.0g (Typ.)
Frame Rate
60Hz
Touch Panel
Without
Interface Type
Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 pins FPC
Power Supply
3.3V (Typ.)
Environment
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 3.3G (32.3 m/s²)

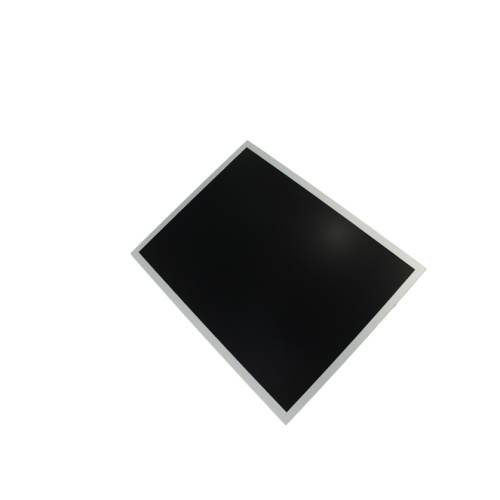

Product Picture:
