TM035KVHG01-09 TIANMA 3.5inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
TM035KVHG01-09 is a 3.5 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, without backlight driver, touchscreen PCAP. Tianma TFT-LCD is a 3.5 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Pre Ver1.1 which was released out on 11 12 2013, TM035KVHG01-09 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 70.08(W)×52.56(H) mm, outline size of 79.9(W)×68.9(H)×4.73(D) mm, with surface treament of Hard coating (6H). As a TN, Normally White, Transmissive LCM product, TM035KVHG01-09 can provides 400 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 6S1P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. TM035KVHG01-09 utilizes Digital RGB (8/24-bit) + SPI, CCIR601/656 as it's signal inputting systerm, which connected by 54 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
Panel Model
TM035KVHG01-09
Panel Brand
TIANMA
Panel Size
3.5"
Panel Type
a-Si TFT-LCD, LCM
Resolution
320(RGB)×240 , QVGA
Pixel Format
RGB Vertical Stripe
Display Area
70.08(W)×52.56(H) mm
Outline Size
79.9(W)×68.9(H) ×4.73(D) mm
Surface
Hard coating (6H)
Brightness
400 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (TM)
Viewing Angle
70/70/60/70 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
12 o'clock
Response Time
20 (Typ.)(Tr+Td)
Display Colors
16.7M 50% NTSC
Lamp Type
6S1P WLED , Without Driver
Frequency
60Hz
Touch Screen
PCAP
Signal Interface
Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 pins FPC
Input Voltage
3.3V (Typ.)
Environment
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

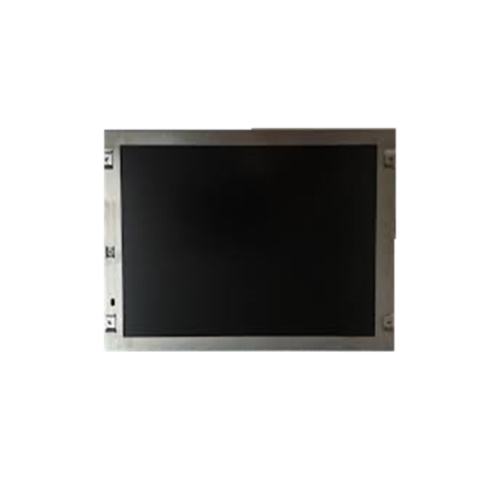

Product Picture:
