TM035KVHG01 TIANMA 3.5 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
TM035KVHG01 is a 3.5 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, without backlight driver, PCAP touch screen. Tianma TFT-LCD is a 3.5 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. TM035KVHG01 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 70.08(W)×52.56(H) mm, outline size of 79.9(W)×68.9(H)×4.73(D) mm, with surface treament of Anti Fingerprint, Hard coating (4H). As a TN, Normally White, Transmissive LCM product, TM035KVHG01 can provides 400 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 6S1P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. TM035KVHG01 utilizes Digital RGB (8/24-bit) + SPI, CCIR601/656 as it's signal inputting systerm, which connected by 54 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
Model
TM035KVHG01
Brand
TIANMA
Diagonal Size
3.5 inch
Pixel Format
320(RGB)×240 [QVGA]
Active Area
70.08(H)×52.56(V) mm
Luminance
400 cd/m² (Typ.)
View Direction
12 o'clock
Viewing Angle
70/70/60/70 (Typ.)(CR≥10)
Support Color
16.7M 50% NTSC
Frame Rate
60Hz
Type
a-Si TFT-LCD , LCM
Configuration
RGB Vertical Stripe
Outline Dim.
79.9(H)×68.9(V) ×4.73(D) mm
Treatment
Anti Fingerprint, Hard coating (4H)
Contrast Ratio
500:1 (Typ.) (TM)
Response Time
20 (Typ.)(Tr+Td)
Operating Mode
TN, Normally White, Transmissive
Light Source
WLED [6S1P] , W/O Driver
Touch Panel
PCAP
Interface Type
Digital RGB (8/24-bit) + SPI, CCIR601/656 54 pins FPC
Power Supply
3.3V (Typ.)
Environment
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

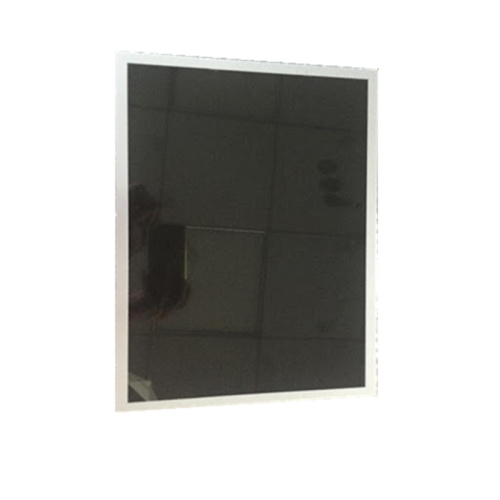

Product Picture:
