Tianma Microelectronics Co., Ltd. (hereafter called TIANMA) TM035KBH02 is a 3.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, 4-wire Resistive touch screen. Tianma TFT-LCD is a 3.5 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. TM035KBH02 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 70.08(W)×52.56(H) mm, outline size of 76.9(W)×63.9(H)×4.2(D) mm, viewing area size of 72.08(W)×54.56(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 40.0g (Typ.). As a TN, Normally White, Transmissive LCM product, TM035KBH02 can provides 350 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Dithering gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 53% (NTSC). This product adopted 6S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. TM035KBH02 utilizes Digital RGB (8/24-bit) + SPI, CCIR601/656 as it's signal inputting systerm, which connected by 54 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
TM035KBH02 1 Compatible |
|
Panel Brand |
TIANMA |
|
Panel Size |
3.5" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
320(RGB)×240 , QVGA |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
70.08(W)×52.56(H) mm |
|
Bezel Opening |
72.08(W)×54.56(H) mm |
|
Outline Size |
76.9(W)×63.9(H) ×4.2(D) mm |
|
Surface |
Antiglare, Hard coating (3H) |
|
Brightness |
350 cd/m² (Typ.) |
|
Contrast Ratio |
500:1 (Typ.) (TM) |
|
Viewing Angle |
70/70/60/70 (Typ.)(CR≥10) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Best View on |
12 o'clock |
|
Response Time |
25 (Typ.)(Tr+Td) |
|
Display Colors |
16.7M 53% NTSC |
|
Lamp Type |
6S1P WLED , 20K hours , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
4-wire Resistive Touch |
|
Panel Weight |
40.0g (Typ.) |
|
Signal Interface |
Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 pins FPC |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |

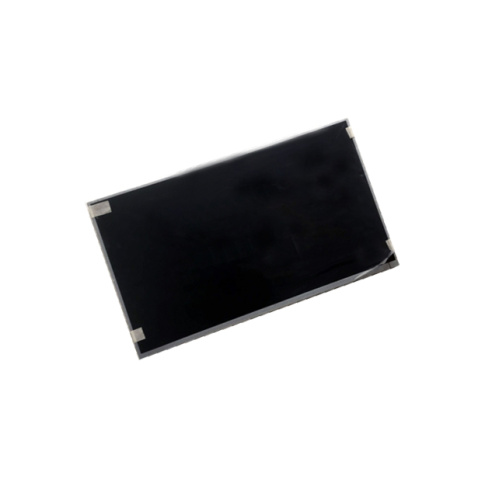

Product Picture:
