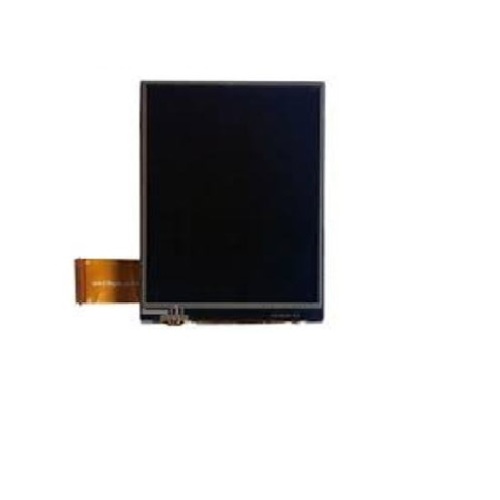

3.5 inch Tianma TFT-LCD module TM035WDHG03

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

Tianma Microelectronics Co., Ltd. (hereafter called TIANMA) TM035WDHG03 is a 3.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Tianma TFT-LCD is a 3.5 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver1.0 which was released out on 3 31 2014, TM035WDHG03 supports display 480(RGB)×640 (VGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 53.28(W)×71.04(H) mm, outline size of 64(W)×85(H)×3.3(D) mm, viewing area size of 56.44(W)×74.32(H) mm, net weight of 44.7g (Typ.). As a TN, Normally White, Transmissive LCM product, TM035WDHG03 can provides 350 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 9 o'clock , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted 6S1P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. TM035WDHG03 utilizes Parallel RGB (1 ch, 6-bit) + SPI as it's signal inputting systerm, which connected by 39 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model	TM035WDHG03
Panel Brand	TIANMA
Panel Size	3.5"
Resolution	480(RGB)×640 , VGA
Display Area	53.28(W)×71.04(H) mm
Outline Size	64(W)×85(H) ×3.3(D) mm
Brightness	350 cd/m² (Typ.)
Viewing Angle	70/70/70/60 (Typ.)(CR≥10)
Best View on	9 o'clock
Display Colors	262K 50% NTSC
Frequency	60Hz
Weight	44.7g (Typ.)
Panel Type	a-Si TFT-LCD , LCM
Pixel Format	RGB Vertical Stripe
Bezel Opening	56.44(W)×74.32(H) mm
Contrast Ratio	500:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	25 (Typ.)(Tr+Td)
Lamp Type	6S1P WLED , Without Driver
Touch Screen	Without
Signal Interface	Parallel RGB (1 ch, 6-bit) + SPI , 39 pins , FPC
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
