4.3 Inch Tianma TFT-LCD module TM043NDHG12

Tianma Microelectronics Co., Ltd. (hereafter called TIANMA) TM043NDHG12 is a 4.3 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Tianma TFT-LCD is a 4.3 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Pre Ver1.3 which was released out on 10 26 2016, TM043NDHG12 supports display 480(RGB)×272 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, outline size of 105.5(W)×67.2(H)×3.2(D) mm, viewing area size of 99.04(W)×54.86(H) mm, with surface treament of Antiglare, net weight of TBD. As a TN, Normally White, Transmissive LCM product, TM043NDHG12 can provides 270 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 5S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. TM043NDHG12 utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3/7.5V (Typ.)(VDD/VPP). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

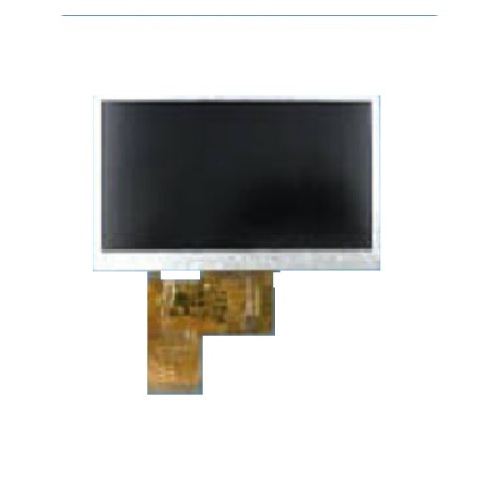

Product Picture:

Application:

Mobile phone,handheld&PDA

Packing Information

Carton Package

1. Max. Capacity: 112 pcs LCD Modules / per carton

2. Max. Weight: 14 kg / per carton
3. The outside dimension of carton is 540(L) mm x 360(W) mm x 250(H) mm
