Tianma 5.5 inch TFT-LCD TM055JVZG08

TM055JVZG08 is a 5.5 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, without backlight driver, touch screen PCAP.  This Tianma TFT-LCD is a 5.5 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. TM055JVZG08 supports display 720(RGB)×1280 (WXGA) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 268 PPI. As for mechanical detail, it features active area of 68.04(W)×120.96(H) mm. As a SFT, Normally Black, Transmissive Assembly product, TM055JVZG08 can provides 350 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. TM055JVZG08 utilizes MIPI (4 data lanes) as it's signal inputting systerm. It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

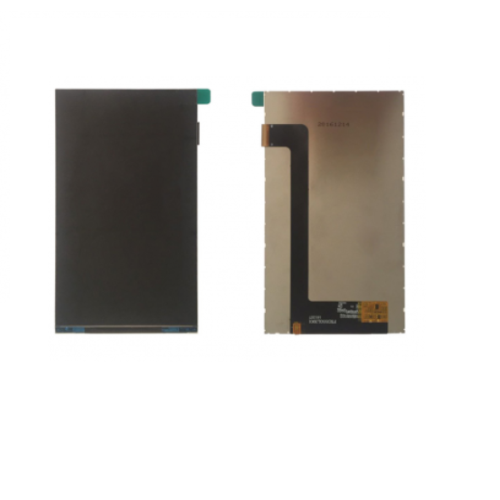

Product Picture:

Application:

Mobile phone,handheld&PDA

Packing Information

Carton Package

1. Max. Capacity: 144 pcs LCD Modules / per carton

2. Max. Weight: 11 kg / per carton
3. The outside dimension of carton is 540(L) mm x 360(W) mm x 250(H) mm
