PD104SM1 PVI 10.4 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CIF, EXW

Min. Order:: 1 Bag/Bags

Min. Order:: 1 Bag/Bags

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN, SHENZHEN, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	SHENZHEN,SHENZHEN,SHENZHEN

Product Description

Prime View International Co., Ltd. (hereafter called PVI) PD104SM1 is a 10.4 inch diagonal a-Si TFT-LCD display screen product, with an incorporated CCFL lighting system, without backlight driver, without touch screen. This PVI TFT-LCD is a 10.4 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of Ver1.0 which was released out on 11 21 2008, PD104SM1 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 236(W)×176.9(H) mm, viewing area size of 215.0(W)×162.0(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 288±15g. As a TN, Normally White, Transmissive LCM product, PD104SM1 can provides 230 cd/m² display brightness 400:1 transimissive contrast ratio, 65/65/45/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side), external backlight driver is additionally needed. PD104SM1 utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.).

We are able to offer AD board for this display to support VGA video input.

Model	PD104SM1
Brand	PVI
Diagonal Size	10.4 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	800(RGB)×600 [SVGA] 96PPI
Configuration	RGB Vertical Stripe
Active Area	211.2(H)×158.4(V) mm
Outline Dim.	236(H)×176.9(V) mm
Bezel Area	215.0(H)×162.0(V) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	230 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	10/15 (Typ.)(Tr/Td)
Viewing Angle	65/65/45/65 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K 50% NTSC
Light Source	CCFL [1 pcs] , W/O Driver
Weight	288±15g
Touch Panel	Without
Interface Type	LVDS (1 ch, 6-bit) , 20 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 70 °C

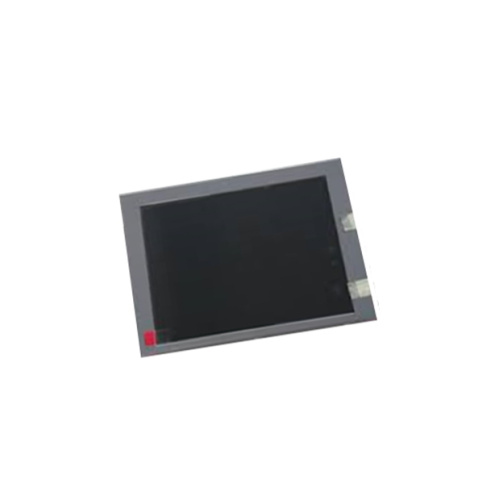

Product Picture:

PD104SM1
