PD064VT4 PVI 6.4 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF, EXW
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- SHENZHEN, SHENZHEN, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | SHENZHEN,SHENZHEN,SHENZHEN |
Prime View International Co., Ltd. (hereafter called PVI) PD064VT4 is a 6.4 inch diagonal a-Si TFT-LCD display screen product, with an incorporated CCFL lighting system, without backlight driver, without touch screen. This PVI TFT-LCD is a 6.4 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of Ve10.0 which was released out on 6 10 2008, PD064VT4 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 129.6(W)×97.44(H) mm, outline size of 175.4(W)×126.9(H) mm, viewing area size of 134.8(W)×101.8(H) mm, with surface treament of Antiglare, net weight of 340±10g. As a TN, Normally White, Transmissive LCM product, PD064VT4 can provides 400 cd/m² display brightness 400:1 transimissive contrast ratio, 55/55/40/55 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours, external backlight driver is additionally needed. PD064VT4 utilizes TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 31 pins Connector with power supply voltage of 5.0V (Typ.)(VCC).
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
PD064VT4 |
|
Panel Brand |
PVI |
|
Panel Size |
6.4" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
640(RGB)×480, VGA, 125PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
129.6(W)×97.44(H) mm |
|
Bezel Opening |
134.8(W)×101.8(H) mm |
|
Outline Size |
175.4(W)×126.9(H) mm |
|
Surface |
Antiglare |
|
Brightness |
400 cd/m² (Typ.) |
|
Contrast Ratio |
400:1 (Typ.) (TM) |
|
Viewing Angle |
55/55/40/55 (Typ.)(CR≥10) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Best View on |
6 o'clock |
|
Response Time |
15/25 (Typ.)(Tr/Td) |
|
Display Colors |
262K |
|
Lamp Type |
2 pcs CCFL , 50K hours , Without Driver |
|
Touch Screen |
Without |
|
Panel Weight |
340±10g |
|
Signal Interface |
TTL (1 ch, 6-bit) , 31 pins Connector |
|
Input Voltage |
5.0V (Typ.)(VCC) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

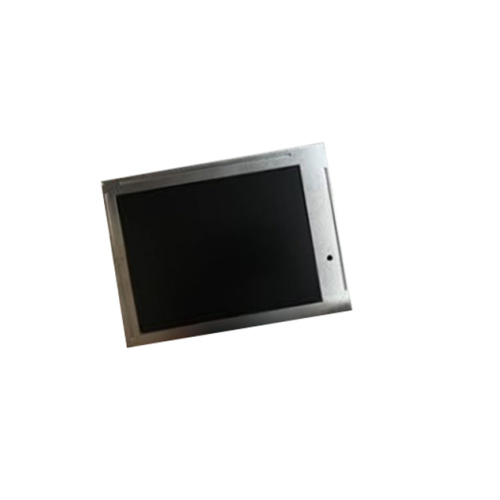

Product Picture:
