PD050VX4 PVI 5.0 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CIF, EXW

Min. Order:: 1 Bag/Bags

Min. Order:: 1 Bag/Bags

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN, SHENZHEN, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	SHENZHEN,SHENZHEN,SHENZHEN

Product Description

Prime View International Co., Ltd. (hereafter called PVI) PD050VX4 is a 5.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated CCFL lighting system, without backlight driver, without touch screen. This PVI TFT-LCD is a 5.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of Ver6.0 which was released out on 5 15 2009, PD050VX4 supports display 480×640(RGB) (VGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 74.88(W)×101.76(H) mm, outline size of 91.4(W)×119.3(H)×8.2(D) mm, viewing area size of 78.50(W)×106.7(H) mm, net weight of 120±10g. As a TN, Normally White, Transmissive LCM product, PD050VX4 can provides 350 cd/m² display brightness 400:1 transimissive contrast ratio, 75/75/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 15/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 1 pcs CCFL as it's backlight systerm and have a working life time of 50K hours, external backlight driver is additionally needed. PD050VX4 utilizes TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 3.3/3.3/7.7/15.4/-5.5V (Typ.)(VCC/VDD1/VDD2/VCG/VEE).

We are able to offer AD board for this display to support VGA video input.

Panel Model	PD050VX4
Panel Brand	PVI
Panel Size	5.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	480×640(RGB), VGA, 160PPI
Pixel Format	RGB Horizontal Stripe
Display Area	74.88(W)×101.76(H) mm
Bezel Opening	78.50(W)×106.7(H) mm
Outline Size	91.4(W)×119.3(H) ×8.2(D) mm
Brightness	350 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.) (TM)
Viewing Angle	75/75/50/70 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Response Time	15/25 (Typ.)(Tr/Td)
Display Colors	262K
Lamp Type	1 pcs CCFL , 50K hours , Without Driver
Touch Screen	Without
Panel Weight	120±10g
Signal Interface	TTL (1 ch, 6-bit) , 60 pins FPC
Input Voltage	3.3/3.3/7.7/15.4/-5.5V (Typ.)(VCC/VDD1/VDD2/VCG/VEE)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

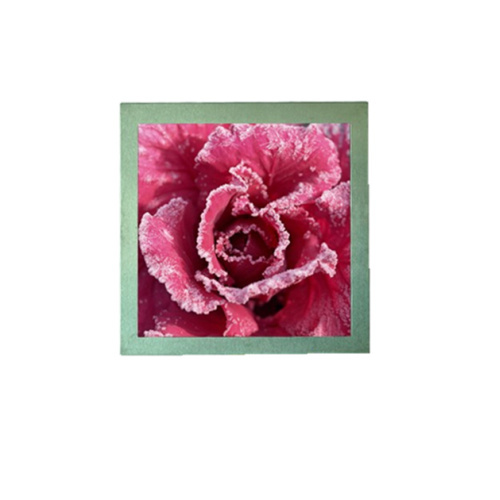

Product Picture:

PD050VX4
