PA050DT3 PVI 5.0 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CIF, EXW

Min. Order:: 1 Bag/Bags

Min. Order:: 1 Bag/Bags

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN, SHENZHEN, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	SHENZHEN,SHENZHEN,SHENZHEN

Product Description

Prime View International Co., Ltd. (hereafter called PVI) PA050DT3 is a 5.0 inch diagonal a-Si TFT-LCD display panel product, with an integral CCFL backlight system, With Inverter , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C .This PVI TFT-LCD is a 5.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. PA050DT3 supports display 320(RGB)×234 with aspect ratio of 7:5 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 102.72(W)×74.53(H) mm, outline size of 127.4(W)×92.8(H)×18.33(D) mm, with surface treament of Antiglare, net weight of 200±10g. As a TN, Normally White, Transmissive LCM product, PA050DT3 can provides 400 cd/m² display brightness 350:1 transimissive contrast ratio, 50/50/35/15 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 15/30 (Typ.)(Tr/Td) ms., thus presenting a palette of Full color colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With Inverter. PA050DT3 utilizes TFT Specific Analog RGB as it's signal inputting systerm, which connected by 28 pins Connector with power supply voltage of 12.0V (Typ.)(LCD+Backlight).

We are able to offer AD board for this display to support VGA video input.

Panel Model	PA050DT3
Panel Brand	PVI
Panel Size	5.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	320(RGB)×234, 79PPI
Pixel Format	RGB Vertical Stripe
Display Area	102.72(W)×74.53(H) mm
Outline Size	127.4(W)×92.8(H) ×18.33(D) mm
Surface	Antiglare
Brightness	400 cd/m² (Typ.)
Contrast Ratio	350:1 (Typ.) (TM)
Viewing Angle	50/50/35/15 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Response Time	15/30 (Typ.)(Tr/Td)
Display Colors	Full color
Lamp Type	1 pcs CCFL , 30K hours , With Inverter
Touch Screen	Without
Panel Weight	200±10g
Signal Interface	TFT Specific Analog RGB , 28 pins Connector
Input Voltage	12.0V (Typ.)(LCD+Backlight)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

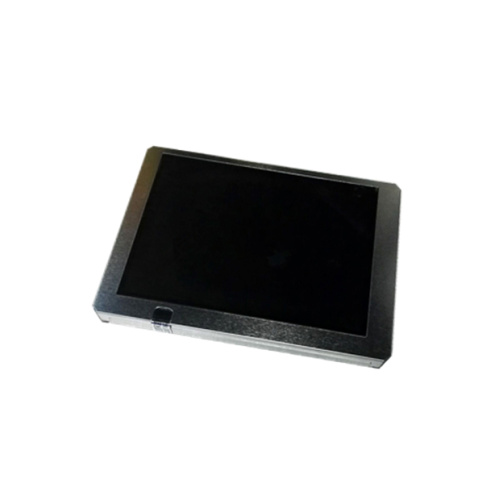

Product Picture:

PA050DT3
