PD050VXB PVI 5.0 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CIF, EXW

Min. Order:: 1 Bag/Bags

Min. Order:: 1 Bag/Bags

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN, SHENZHEN, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF,EXW
Transportation:	Ocean,Land,Air
Port:	SHENZHEN,SHENZHEN,SHENZHEN

Product Description

The PD050VXB is a 5.0 inch diagonal a-Si TFT-LCD display panel product from Prime View International Co., Ltd. (hereafter called PVI), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . This PVI TFT-LCD is a 5.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. PD050VXB supports display 480×640(RGB) (VGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 74.88(W)×101.76(H) mm, outline size of 91.4(W)×119.3(H)×8.2(D) mm, viewing area size of 79.88(W)×106.70(H) mm, with surface treament of Antiglare, net weight of 116±10g. As a TN, Normally White, Transmissive LCM product, PD050VXB can provides 900 cd/m² display brightness 600:1 transimissive contrast ratio, 75/75/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 3S10P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. PD050VXB utilizes TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 3.3/7.7/15.4/-5.5/3.3V (Typ.)(VDD1/VDD2/VGG/VEE/VCC).

We are able to offer AD board for this display to support VGA video input.

Model	PD050VXB
Brand	PVI
Diagonal Size	5.0 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	480×640(RGB) [VGA] 160PPI
Configuration	RGB Horizontal Stripe
Active Area	74.88(H)×101.76(V) mm
Outline Dim.	91.4(H)×119.3(V) ×8.2(D) mm
Bezel Area	79.88(H)×106.70(V) mm
Treatment	Antiglare
Luminance	900 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	15/25 (Typ.)(Tr/Td)
Viewing Angle	75/75/50/70 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K
Light Source	WLED [3S10P] , 20K hours , W/O Driver
Weight	116±10g
Touch Panel	Without
Interface Type	TTL (1 ch, 6-bit) , 60 pins FPC
Power Supply	3.3/7.7/15.4/-5.5/3.3V (Typ.)(VDD1/VDD2/VGG/VEE/VCC)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

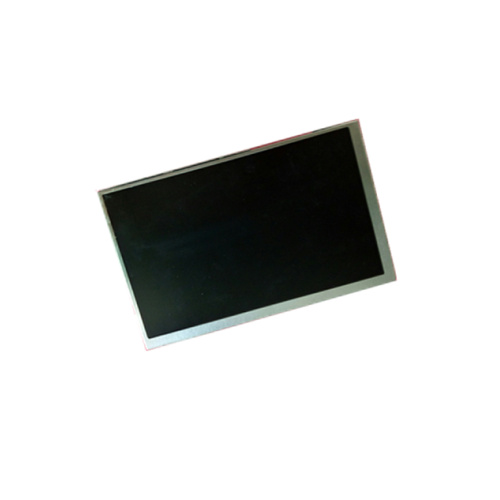

Product Picture:

PD050VXB
