Prime View International Co., Ltd. (hereafter called PVI) PD035VX9 is a 3.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touch screen 4-wire Resistive Touch. This PVI TFT-LCD is a 3.5 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of Ver0.6 which was released out on 8 26 2011, PD035VX9 supports display 480(RGB)×640 (VGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 53.28(W)×71.04(H) mm, outline size of 64(W)×85(H)×6.4(D) mm, viewing area size of 56.28(W)×74.04(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 44.0±4.4g. As a TN, Normally White, Transmissive LCM product, PD035VX9 can provides 400 cd/m² display brightness 450:1 transimissive contrast ratio, 75/75/50/50 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 15/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 3S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. PD035VX9 utilizes CPU/RGB/SPI as it's signal inputting systerm, which connected by 61 pins FPC. It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
PD035VX9 |
|
Brand |
PVI |
|
Diagonal Size |
3.5 inch |
|
Pixel Format |
480(RGB)×640 [VGA] 228PPI |
|
Active Area |
53.28(H)×71.04(V) mm |
|
Bezel Area |
56.28(H)×74.04(V) mm |
|
Luminance |
400 cd/m² (Typ.) |
|
Viewing Angle |
75/75/50/50 (Typ.)(CR≥10) |
|
Support Color |
262K |
|
Weight |
44.0±4.4g |
|
Frame Rate |
60Hz |
|
Type |
a-Si TFT-LCD , LCM |
|
Configuration |
RGB Vertical Stripe |
|
Outline Dim. |
64(H)×85(V) ×6.4(D) mm |
|
Treatment |
Antiglare, Hard coating (3H) |
|
Contrast Ratio |
450:1 (Typ.) (TM) |
|
Response Time |
15/10 (Typ.)(Tr/Td) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Light Source |
WLED [3S3P] , 20K hours , W/O Driver |
|
Touch Panel |
4-wire Resistive Touch |
|
Interface Type |
CPU/RGB/SPI 61 pins FPC |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |

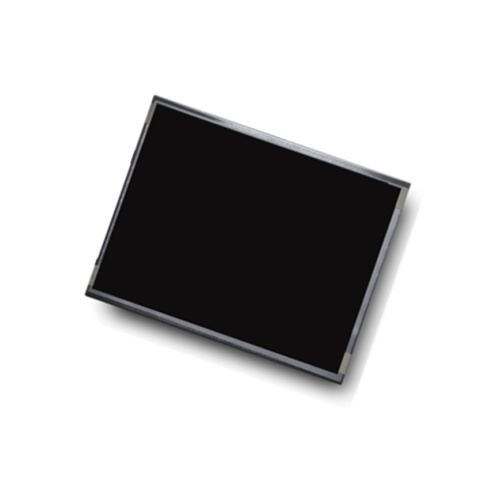

Product Picture:
