AA104XN11 Mitsubishi 10.4 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,SHENZHEN

Product Description

Mitsubishi Electric Corporation (hereafter called Mitsubishi) AA104XN11 is a 10.4 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -40 ~ 80°C .This Mitsubishi TFT-LCD is a 10.4 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen.AA104XN11 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 230(W)×180.2(H) mm. As a SWV, Normally Black LCM product, AA104XN11 can provides 1300 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, external backlight driver is additionally needed. AA104XN11 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm. It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model	AA104XN11
Brand	Mitsubishi
Diagonal Size	10.4 inch
Pixel Format	1024(RGB)×768 [XGA] 123PPI
Active Area	211.2(H)×158.4(V) mm
Luminance	1300 cd/m² (Typ.)
View Direction	Symmetry
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Support Color	262K/16.7M 70% NTSC
Frame Rate	60Hz
Type	a-Si TFT-LCD , LCM
Configuration	RGB Vertical Stripe
Outline Dim.	230(H)×180.2(V) mm
Contrast Ratio	1000:1 (Typ.) (TM)
Operating Mode	SWV, Normally Black
Light Source	WLED , 100K hours , W/O Driver
Touch Panel	Without
Interface Type	LVDS (1 ch, 6/8-bit)
Environment	Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -40 ~ 80 °C ; Vibration Level: 6.8G (66.64 m/s²)

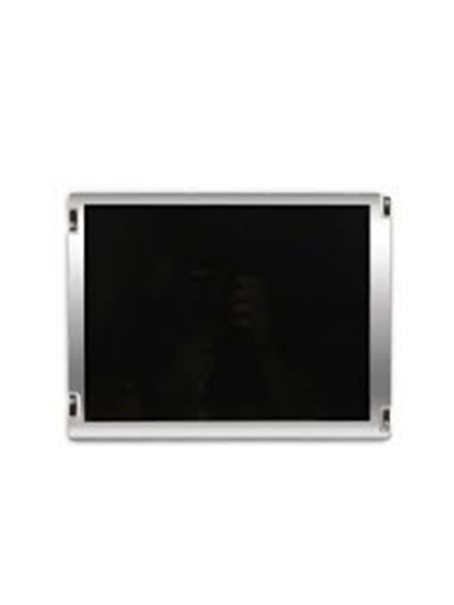

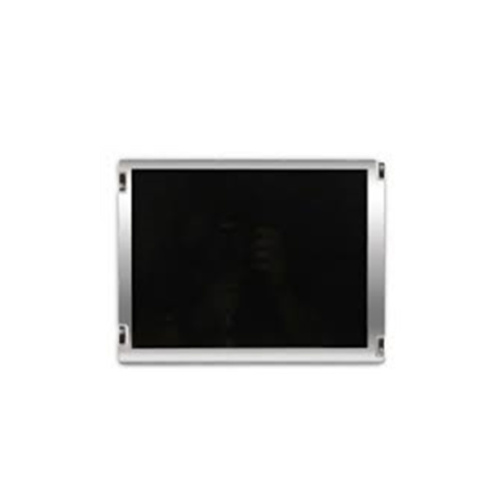

Product Picture:

AA104XN11
