AA090TB01-CE1 Mitsubishi 9.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AA090TB01-CE1 is a 9.0" diagonal a-Si TFT-LCD display panel product from Mitsubishi Electric Corporation (hereafter called Mitsubishi), with an integral WLED backlight system, With LED Driver , touch screen PCAP, Optical Bonding. It features an operating temperature range of -30 ~ 70°C , a storage temperature range of -30 ~ 80°C ,This Mitsubishi TFT-LCD is a 9.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen.AA090TB01-CE1 supports display 1280(RGB)×768 (WXGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 195.84(W)×117.504(H) mm, outline size of 229(W)×146.2(H)×14.7(D) mm, with surface treament of Clear, net weight of 600g (Typ.). As a SWV, Normally Black, Transmissive LCM product, AA090TB01-CE1 can provides 720 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 2 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, With LED Driver. AA090TB01-CE1 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AA090TB01-CE1 |
|
Panel Brand |
Mitsubishi |
|
Panel Size |
9.0" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
1280(RGB)×768, WXGA, 166PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
195.84(W)×117.504(H) mm |
|
Outline Size |
229(W)×146.2(H) ×14.7(D) mm |
|
Surface |
Clear |
|
Brightness |
720 cd/m² (Typ.) |
|
Contrast Ratio |
1000:1 (Typ.) (TM) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Display Mode |
SWV, Normally Black, Transmissive |
|
Best View on |
Symmetry |
|
Response Time |
12/12 (Typ.)(Tr/Td) |
|
Display Colors |
262K/16.7M 50% NTSC |
|
Lamp Type |
2 strings WLED , 100K hours , With LED Driver |
|
Frequency |
60Hz |
|
Touch Screen |
PCAP, Optical Bonding |
|
Panel Weight |
600g (Typ.) |
|
Signal Interface |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -30 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

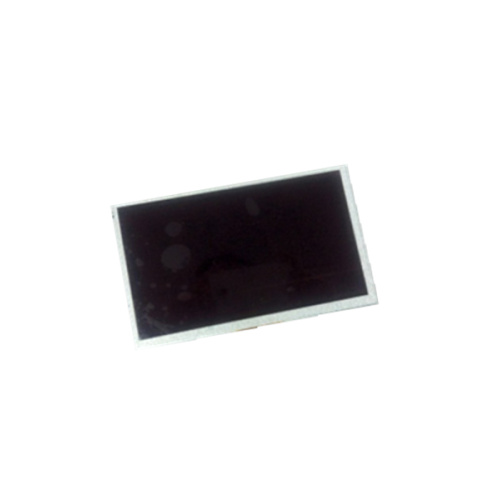

Product Picture:
