AA150XT12DDE11 Mitsubishi 15.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Mitsubishi Electric Corporation (hereafter called Mitsubishi) AA150XT12DDE11 is a 15.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touch screen PCAP. This Mitsubishi TFT-LCD is a 15.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AA150XT12DDE11 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.1(W)×228.1(H) mm, outline size of 346.5(W)×275(H) mm, with surface treament of Clear, net weight of 1.95Kgs (Typ.). As a TN, Normally White, Transmissive LCM product, AA150XT12DDE11 can provides 1200 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 6/19 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. AA150XT12DDE11 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
AA150XT12DDE11 |
|
Brand |
Mitsubishi |
|
Diagonal Size |
15.0 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
1024(RGB)×768 [XGA] 85PPI |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
304.1(H)×228.1(V) mm |
|
Outline Dim. |
346.5(H)×275(V) mm |
|
Treatment |
Clear |
|
Luminance |
1200 cd/m² (Typ.) |
|
Contrast Ratio |
800:1 (Typ.) (TM) |
|
View Direction |
6 o'clock |
|
Response Time |
6/19 (Typ.)(Tr/Td) |
|
Viewing Angle |
80/80/60/80 (Typ.)(CR≥10) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Support Color |
262K/16.7M 50% NTSC |
|
Light Source |
WLED , W/O Driver |
|
Weight |
1.95Kgs (Typ.) |
|
Frame Rate |
60Hz |
|
Touch Panel |
PCAP |
|
Interface Type |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C |

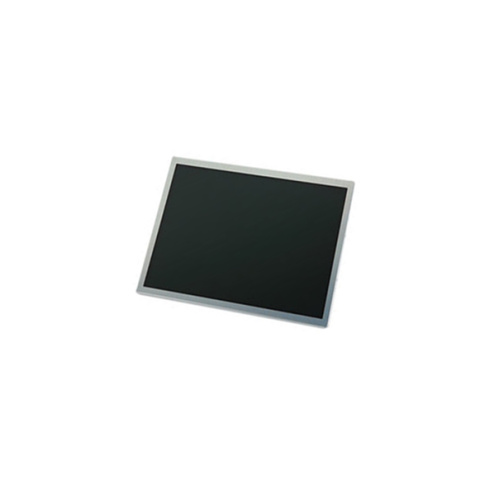

Product Picture:
