AA104SL12DDE11 Mitsubishi 10.4 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
The AA104SL12DDE11 is a 10.4 inch diagonal a-Si TFT-LCD display panel product from Mitsubishi Electric Corporation (hereafter called Mitsubishi), with an integral WLED backlight system, without backlight driver, touch screen PCAP. It features an operating temperature range of -30 ~ 70°C , a storage temperature range of -30 ~ 80°C.This Mitsubishi TFT-LCD is a 10.4 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AA104SL12DDE11 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 240.6(W)×190.8(H)×15.5(D) mm, with surface treament of Clear, net weight of 780g (Typ.). As a TN, Normally White, Transmissive LCM product, AA104SL12DDE11 can provides 960 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 4/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 40% (NTSC). This product adopted 2 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, external backlight driver is additionally needed. AA104SL12DDE11 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AA104SL12DDE11 |
|
Panel Brand |
Mitsubishi |
|
Panel Size |
10.4" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
800(RGB)×600, SVGA, 96PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
211.2(W)×158.4(H) mm |
|
Outline Size |
240.6(W)×190.8(H) ×15.5(D) mm |
|
Surface |
Clear |
|
Brightness |
960 cd/m² (Typ.) |
|
Contrast Ratio |
700:1 (Typ.) (TM) |
|
Viewing Angle |
80/80/80/60 (Typ.)(CR≥10) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Best View on |
6 o'clock |
|
Response Time |
4/12 (Typ.)(Tr/Td) |
|
Display Colors |
262K/16.7M 40% NTSC |
|
Lamp Type |
2 strings WLED , 100K hours , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
PCAP |
|
Panel Weight |
780g (Typ.) |
|
Signal Interface |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -30 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

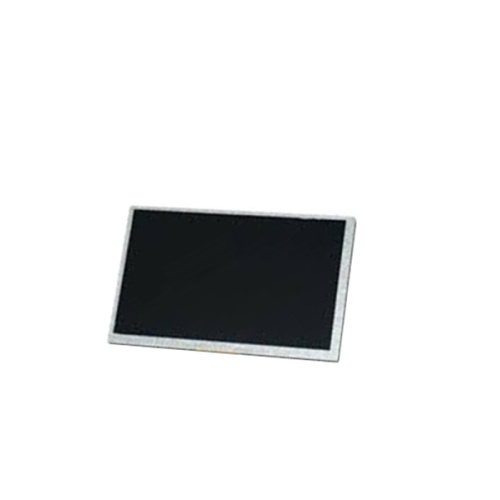

Product Picture:
