AA103AE01 Mitsubishi 10.3 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,SHENZHEN

Product Description

Mitsubishi Electric Corporation (hereafter called Mitsubishi) AA103AE01 is a 10.3 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Mitsubishi TFT-LCD is a 10.3 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of Single Page which was released out on 4 1 2019, AA103AE01 supports display 1920(RGB)×720 with aspect ratio of 8:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 243.648(W)×91.368(H) mm, outline size of 259.1(W)×106.9(H) mm, with surface treament of Antiglare, net weight of 310g (Typ.). As a IPS, Normally Black, Transmissive LCM product, AA103AE01 can provides 1000 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. AA103AE01 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm.

We are able to offer AD board for this display to support VGA video input.

Panel Model	AA103AE01
Panel Brand	Mitsubishi
Panel Size	10.3"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×720, 200PPI
Pixel Format	RGB Vertical Stripe
Display Area	243.648(W)×91.368(H) mm
Outline Size	259.1(W)×106.9(H) mm
Surface	Antiglare
Brightness	1000 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	IPS, Normally Black, Transmissive
Best View on	Symmetry
Display Colors	16.7M 72% NTSC
Lamp Type	WLED , 30K hours , Without Driver
Touch Screen	Without
Panel Weight	310g (Typ.)
Signal Interface	LVDS (1 ch, 8-bit)
Environment	Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C

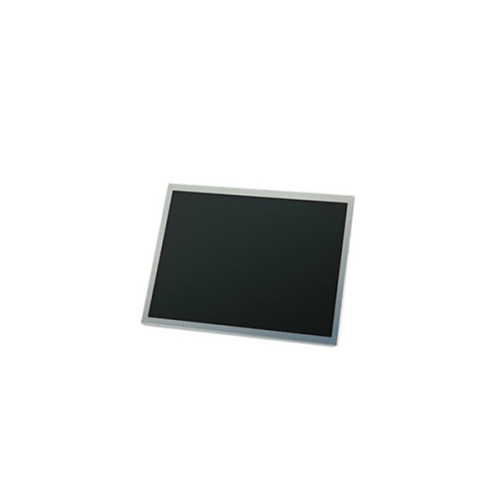

Product Picture:

AA103AE01
