AC043NB01 Mitsubishi 4.3 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Mitsubishi Electric Corporation (hereafter called Mitsubishi) AC043NB01 is a 4.3 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without touch screen. This Mitsubishi TFT-LCD is a 4.3 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AC043NB01 supports display 480(RGB)×272 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 95(W)×53.9(H) mm, outline size of 105.5(W)×67.2(H) mm, with surface treament of Clear, net weight of 60g. As a TN, Normally White, Transflective LCM product, AC043NB01 can provides 800 cd/m² display brightness 130:1 transimissive contrast ratio, 50/35/25/50 (L/R/U/D) viewing angle . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours. AC043NB01 utilizes CMOS (1 ch, 8-bit) as it's signal inputting systerm. It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
AC043NB01 |
|
Brand |
Mitsubishi |
|
Diagonal Size |
4.3 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
480(RGB)×272 [WQVGA] 128PPI |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
95(H)×53.9(V) mm |
|
Outline Dim. |
105.5(H)×67.2(V) mm |
|
Treatment |
Clear |
|
Luminance |
800 cd/m² (Typ.) |
|
Contrast Ratio |
130:1 (Typ.) (TM) |
|
Viewing Angle |
50/35/25/50 |
|
Operating Mode |
TN, Normally White, Transflective |
|
Support Color |
16.7M 50% NTSC |
|
Light Source |
WLED , 50K hours |
|
Weight |
60g |
|
Frame Rate |
60Hz |
|
Touch Panel |
Without |
|
Interface Type |
CMOS (1 ch, 8-bit) |
|
Environment |
Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 85 °C |

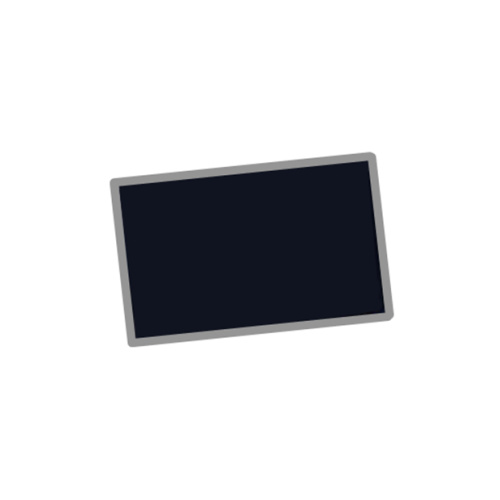

Product Picture:
