AA121ST01-DE3 Mitsubishi 12.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
The AA121ST01-DE3 is a 12.1 inch diagonal a-Si TFT-LCD display panel product from Mitsubishi Electric Corporation (hereafter called Mitsubishi), with an integral WLED backlight system, With LED Driver , touch screen PCAP, Air Bonding. It features an operating temperature range of -30 ~ 70°C , a storage temperature range of -30 ~ 80°C .This Mitsubishi TFT-LCD is a 12.1 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen.AA121ST01-DE3 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 246(W)×184.5(H) mm, outline size of 260.5(W)×203(H) mm, with surface treament of Antiglare, net weight of 970g (Typ.). As a SWV, Normally Black, Transmissive LCM product, AA121ST01-DE3 can provides 480 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, With LED Driver. AA121ST01-DE3 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AA121ST01-DE3 |
|
Panel Brand |
Mitsubishi |
|
Panel Size |
12.1" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
800(RGB)×600, SVGA, 82PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
246(W)×184.5(H) mm |
|
Outline Size |
260.5(W)×203(H) mm |
|
Surface |
Antiglare |
|
Brightness |
480 cd/m² (Typ.) |
|
Contrast Ratio |
1000:1 (Typ.) (TM) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Display Mode |
SWV, Normally Black, Transmissive |
|
Best View on |
Symmetry |
|
Display Colors |
262K/16.7M 72% NTSC |
|
Lamp Type |
WLED , 100K hours , With LED Driver |
|
Frequency |
60Hz |
|
Touch Screen |
PCAP, Air Bonding |
|
Panel Weight |
970g (Typ.) |
|
Signal Interface |
LVDS (1 ch, 6/8-bit) |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -30 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

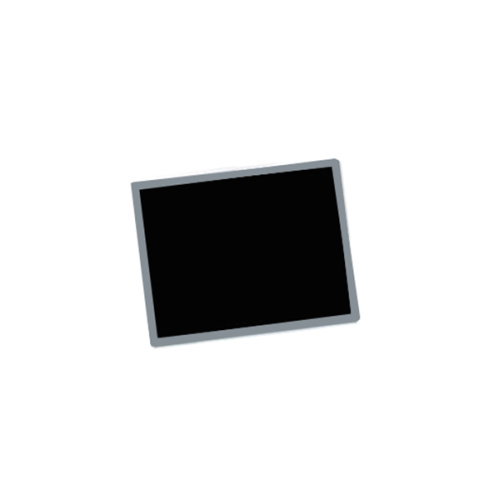

Product Picture:
