AA104XD12--G1 Mitsubishi 10.4 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AA104XD12--G1 is a 10.4 inch diagonal a-Si TFT-LCD display screen product from Mitsubishi, with a built-in WLED backlight, without backlight driver, without touch screen. This Mitsubishi TFT-LCD is a 10.4 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20110111 which was released out on 1 11 2011, AA104XD12--G1 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 210.4(W)×157.8(H) mm, outline size of 230(W)×180.2(H)×14.8(D) mm, viewing area size of 215.4(W)×161.8(H) mm, with surface treament of Hard coating (6H), Antireflection, net weight of 830g (Typ.). As a TN, Normally White, Transmissive LCM product, AA104XD12--G1 can provides 1000 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/65/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 4/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 40% (NTSC). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 100K hours, external backlight driver is additionally needed. AA104XD12--G1 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AA104XD12--G1 |
|
Panel Brand |
Mitsubishi |
|
Panel Size |
10.4" |
|
Resolution |
1024(RGB)×768, XGA, 123PPI |
|
Display Area |
210.4(W)×157.8(H) mm |
|
Outline Size |
230(W)×180.2(H) ×14.8(D) mm |
|
Brightness |
1000 cd/m² (Typ.) |
|
Viewing Angle |
80/80/65/65 (Typ.)(CR≥10) |
|
Best View on |
6 o'clock |
|
Display Colors |
262K/16.7M 40% NTSC |
|
Frequency |
60Hz |
|
Weight |
830g (Typ.) |
|
Panel Type |
a-Si TFT-LCD , LCM |
|
Pixel Format |
RGB Vertical Stripe |
|
Bezel Opening |
215.4(W)×161.8(H) mm |
|
Surface |
Hard coating (6H), Antireflection |
|
Contrast Ratio |
700:1 (Typ.) (TM) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Response Time |
4/12 (Typ.)(Tr/Td) |
|
Lamp Type |
4 strings WLED , 100K hours , Without Driver |
|
Touch Screen |
Without |
|
Signal Interface |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -30 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

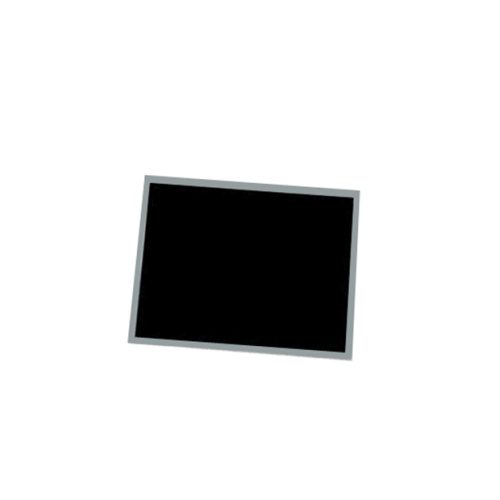

Product Picture:
