AA106TA11DDA11 Mitsubishi 10.6 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,SHENZHEN

Product Description

AA106TA11DDA11 is a 10.6" diagonal a-Si TFT-LCD display panel product from Mitsubishi Electric Corporation (hereafter called Mitsubishi), with an integral WLED backlight system, without backlight driver, touch screen PCAP, Air Bonding. It features an operating temperature range of -30 ~ 70°C , a storage temperature range of -30 ~ 80°C,This Mitsubishi TFT-LCD is a 10.6 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen.AA106TA11DDA11 supports display 1280(RGB)×768 (WXGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 231.36(W)×138.816(H) mm, outline size of 260(W)×167(H) mm, with surface treament of Clear, Antireflection, net weight of 640g. As a SWV, Normally Black, Transmissive LCM product, AA106TA11DDA11 can provides 800 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, external backlight driver is additionally needed. AA106TA11DDA11 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model	AA106TA11DDA11
Panel Brand	Mitsubishi
Panel Size	10.6"
Resolution	1280(RGB)×768, WXGA, 140PPI
Display Area	231.36(W)×138.816(H) mm
Outline Size	260(W)×167(H) mm
Brightness	800 cd/m² (Typ.)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	262K/16.7M 50% NTSC
Frequency	60Hz
Weight	640g
Panel Type	a-Si TFT-LCD , LCM
Pixel Format	RGB Vertical Stripe
Surface	Clear, Antireflection
Contrast Ratio	1000:1 (Typ.) (TM)
Display Mode	SWV, Normally Black, Transmissive
Response Time	12/12 (Typ.)(Tr/Td)
Lamp Type	WLED , 100K hours , Without Driver
Touch Screen	PCAP, Air Bonding
Signal Interface	LVDS (1 ch, 6/8-bit) , 20 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

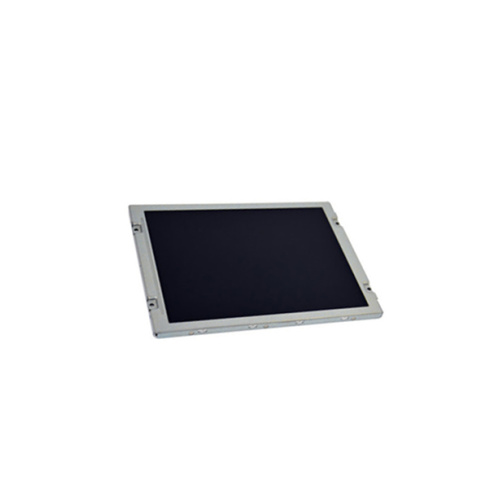

Product Picture:

AA106TA11DDA11
