AA150XT01--T1 Mitsubishi 15.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AA150XT01--T1 is a 15.0 inch diagonal a-Si TFT-LCD display screen product from Mitsubishi, with a built-in WLED backlight, without backlight driver, touch screen 4-wire Resistive Touch. This Mitsubishi TFT-LCD is a 15.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20150512 which was released out on 5 12 2015, AA150XT01--T1 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 326(W)×255(H)×19.2(D) mm, viewing area size of 308.1(W)×232.1(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.51Kgs (Typ.). As a TN, Normally White, Transmissive LCM product, AA150XT01--T1 can provides 640 cd/m² display brightness 760:1 transimissive contrast ratio, 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 6/19 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 7S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 100K hours, external backlight driver is additionally needed. AA150XT01--T1 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
AA150XT01--T1 |
|
Brand |
Mitsubishi |
|
Diagonal Size |
15.0 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
1024(RGB)×768 [XGA] 85PPI |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
304.128(H)×228.096(V) mm |
|
Outline Dim. |
326(H)×255(V) ×19.2(D) mm |
|
Bezel Area |
308.1(H)×232.1(V) mm |
|
Treatment |
Antiglare, Hard coating (3H) |
|
Luminance |
640 cd/m² (Typ.) |
|
Contrast Ratio |
760:1 (Typ.) (TM) |
|
View Direction |
6 o'clock |
|
Response Time |
6/19 (Typ.)(Tr/Td) |
|
Viewing Angle |
80/80/60/80 (Typ.)(CR≥10) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Support Color |
262K/16.7M 50% NTSC |
|
Light Source |
WLED [7S4P] , 100K hours , W/O Driver |
|
Weight |
1.51Kgs (Typ.) |
|
Frame Rate |
60Hz |
|
Touch Panel |
4-wire Resistive Touch |
|
Interface Type |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C |

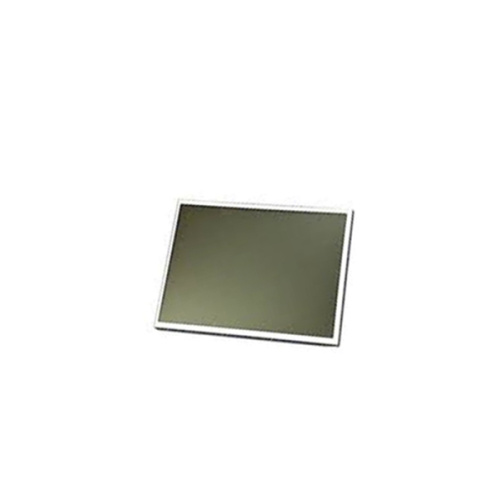

Product Picture:
