AC150XA03-DE1 Mitsubishi 15.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AC150XA03-DE1 is a 15.0 inch diagonal a-Si TFT-LCD display screen product from Mitsubishi, with a built-in WLED backlight, With LED Driver, touch screen PCAP, Air Bonding. This Mitsubishi TFT-LCD is a 15.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20140610 which was released out on 12 17 2014, AC150XA03-DE1 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 346.5(W)×275(H)×17.3(D) mm, with surface treament of Clear, Hard coating (5H), net weight of 1.66Kgs (Typ.). As a TN, Normally White, Transmissive LCM product, AC150XA03-DE1 can provides 360 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 2/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 60% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, With LED Driver. AC150XA03-DE1 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AC150XA03-DE1 |
|
Panel Brand |
Mitsubishi |
|
Panel Size |
15.0" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
1024(RGB)×768, XGA, 85PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
304.128(W)×228.096(H) mm |
|
Outline Size |
346.5(W)×275(H) ×17.3(D) mm |
|
Surface |
Clear, Hard coating (5H) |
|
Brightness |
360 cd/m² (Typ.) |
|
Contrast Ratio |
700:1 (Typ.) (TM) |
|
Viewing Angle |
80/80/70/70 (Typ.)(CR≥10) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Best View on |
6 o'clock |
|
Response Time |
2/10 (Typ.)(Tr/Td) |
|
Display Colors |
262K/16.7M 60% NTSC |
|
Lamp Type |
WLED , 100K hours , With LED Driver |
|
Frequency |
60Hz |
|
Touch Screen |
PCAP, Air Bonding |
|
Panel Weight |
1.66Kgs (Typ.) |
|
Signal Interface |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 70 °C |

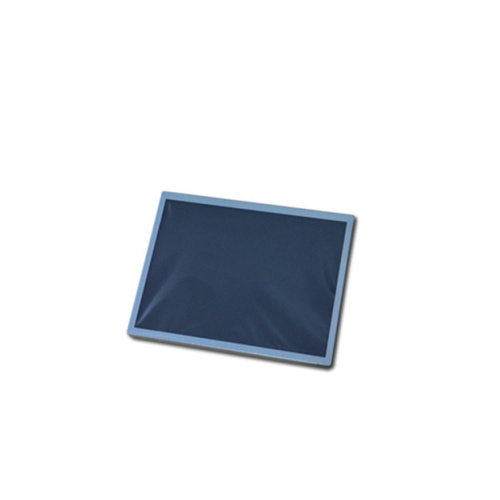

Product Picture:
