AA121XP02 Mitsubishi 12.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Mitsubishi Electric Corporation (hereafter called Mitsubishi) AA121XP02 is a 12.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Mitsubishi TFT-LCD is a 12.1 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AA121XP02 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 245.76(W)×184.32(H) mm, outline size of 260.5(W)×203(H)×10(D) mm, with surface treament of Antiglare, net weight of 590g (Typ.). As a SWV, Normally Black, Transmissive LCM product, AA121XP02 can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, external backlight driver is additionally needed. AA121XP02 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
AA121XP02 |
|
Manufacturer |
Mitsubishi |
|
Screen Size |
12.1 inch |
|
Pixel Number |
1024(RGB)×768 (XGA) 105PPI |
|
Active Area(mm) |
245.76 × 184.32 (H×V) |
|
Luminance |
500 (Typ.)(cd/m²) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Good View at |
Symmetry |
|
Color Depth |
262K/16.7M 72% NTSC |
|
Mass |
590g (Typ.) |
|
Refresh Rate |
60Hz |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Arrangement |
RGB Vertical Stripe |
|
Outline(mm) |
260.5 × 203 × 10 (H×V×D) |
|
Treatment |
Antiglare |
|
Contrast Ratio |
1000 : 1 (Typ.) (TM) |
|
Work Mode |
SWV, Normally Black, Transmissive |
|
Backlight |
WLED , 100K hours , No Driver |
|
Touchscreen |
Without |
|
Signal Type |
LVDS (1 ch, 6/8-bit) |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |

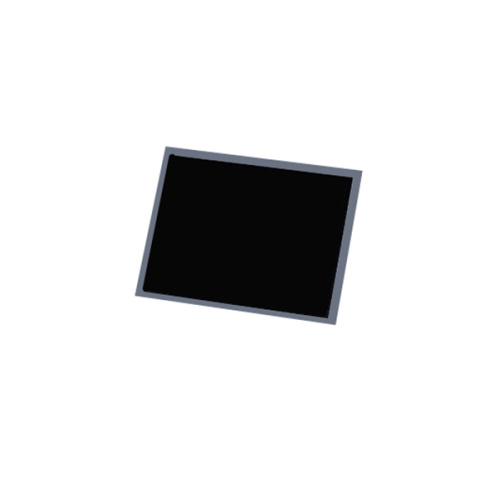

Product Picture:
