AA104VF02 Mitsubishi 10.4 inch TFT-LCD

AA104VF02 (Alias: T-55334GD104J-FW-A-AAN) is a 10.4 inch diagonal a-Si TFT-LCD display screen product from Mitsubishi, with a built-in CCFL backlight, without backlight driver, without touch screen. This  Mitsubishi TFT-LCD is a 10.4 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20070213 which was released out on 2 13 2007, AA104VF02 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 241(W)×181.6(H)×16.5(D) mm, viewing area size of 215.4(W)×161.8(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 650g (Typ.). As a TN, Normally White, Transmissive LCM product, AA104VF02 can provides 1500 cd/m² display brightness 700:1 transimissive contrast ratio, 70/70/65/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 4/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 40% (NTSC). This product adopted 4 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours, external backlight driver is additionally needed. AA104VF02 utilizes CMOS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 31 pins Connector with power supply voltage of 3.3V (Typ.)(VCC). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

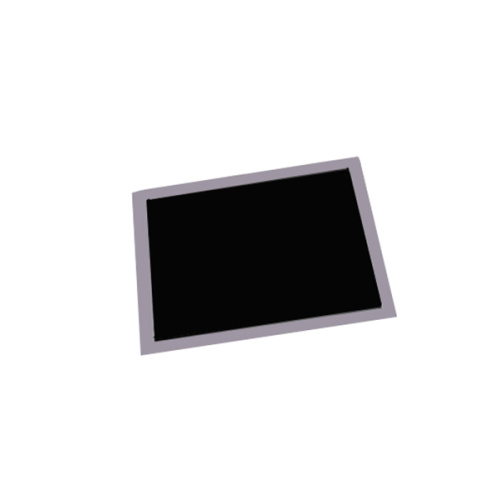

Product Picture:
