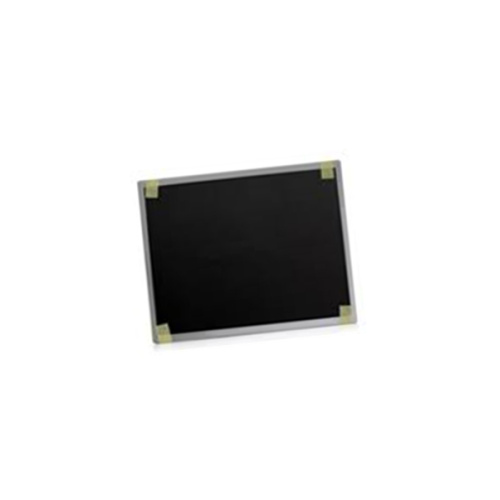

AA121TH11-DE1 Mitsubishi 12.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Mitsubishi Electric Corporation (hereafter called Mitsubishi) AA121TH11-DE1 is a 12.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, touch screen PCAP, Air Bonding. It features an operating temperature range of -30 ~ 70°C , a storage temperature range of -30 ~ 80°C . This Mitsubishi TFT-LCD is a 12.1 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen.AA121TH11-DE1 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 261.12(W)×163.2(H) mm, outline size of 303(W)×205.1(H)×16.3(D) mm, with surface treament of Clear, Hard coating (5H), net weight of 980g (Typ.). As a SWV, Normally Black, Transmissive LCM product, AA121TH11-DE1 can provides 800 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, external backlight driver is additionally needed. AA121TH11-DE1 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
AA121TH11-DE1 |
|
Manufacturer |
Mitsubishi |
|
Screen Size |
12.1 inch |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Pixel Number |
1280(RGB)×800 (WXGA) 124PPI |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
261.12 × 163.2 (H×V) |
|
Outline(mm) |
303 × 205.1 × 16.3 (H×V×D) |
|
Treatment |
Clear, Hard coating (5H) |
|
Luminance |
800 cd/m² (Typ.) |
|
Contrast Ratio |
1000 : 1 (Typ.) (TM) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Response |
12/12 (Typ.)(Tr/Td) ms |
|
Good View at |
Symmetry |
|
Work Mode |
SWV, Normally Black, Transmissive |
|
Color Depth |
262K/16.7M 50% NTSC |
|
Backlight |
4 strings WLED , 100K hours , No Driver |
|
Mass |
980g (Typ.) |
|
Refresh Rate |
60Hz |
|
Touchscreen |
PCAP, Air Bonding |
|
Signal Type |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 70 °C |
