AA121TD01-DE3 Mitsubishi 12.1 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,SHENZHEN

Product Description

The AA121TD01-DE3 is a 12.1 inch diagonal a-Si TFT-LCD display panel product from Mitsubishi Electric Corporation (hereafter called Mitsubishi), with an integral WLED backlight system, With LED Driver , touch screen PCAP, Air Bonding. It features an operating temperature range of -30 ~ 70°C , a storage temperature range of -30 ~ 80°C. This Mitsubishi TFT-LCD is a 12.1 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen.AA121TD01-DE3 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 261.12(W)×163.2(H) mm, outline size of 303(W)×205.1(H)×16.3(D) mm, with surface treament of Clear, Hard coating (5H), net weight of 1.05Kgs (Typ.). As a TN, Normally White, Transmissive LCM product, AA121TD01-DE3 can provides 640 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 4/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 40% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 100K hours, With LED Driver. AA121TD01-DE3 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model Name	AA121TD01-DE3
Manufacturer	Mitsubishi
Screen Size	12.1 inch
Screen Type	LCM , a-Si TFT-LCD
Pixel Number	1280(RGB)×800 (WXGA) 124PPI
Arrangement	RGB Vertical Stripe
Active Area(mm)	261.12 × 163.2 (H×V)
Outline(mm)	303 × 205.1 × 16.3 (H×V×D)
Treatment	Clear, Hard coating (5H)
Luminance	640 cd/m² (Typ.)
Contrast Ratio	700 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/60 (Typ.)(CR≥10)
Response	4/12 (Typ.)(Tr/Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	262K/16.7M 40% NTSC
Backlight	WLED , 100K hours , With LED Driver
Mass	1.05Kgs (Typ.)
Refresh Rate	60Hz
Touchscreen	PCAP, Air Bonding
Signal Type	LVDS (1 ch, 6/8-bit) , 20 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 70 °C

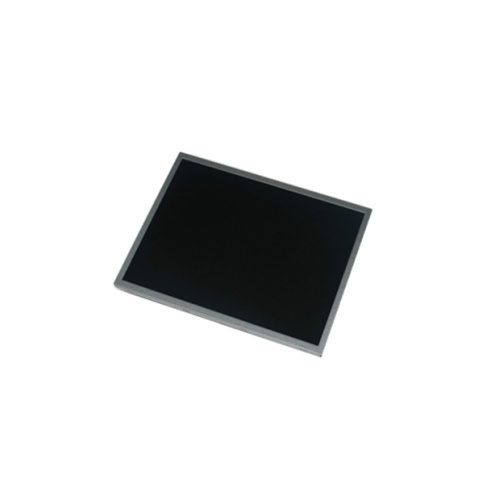

Product Picture:

AA121TD01-DE3
