AA065VE13 Mitsubishi 6.5 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,SHENZHEN

Product Description

AA065VE13 is a 6.5 inch diagonal a-Si TFT-LCD display screen product from Mitsubishi, with a built-in WLED backlight, without backlight driver, without touch screen. This Mitsubishi TFT-LCD is a 6.5 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20130308 which was released out on 3 8 2013, AA065VE13 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 132.48(W)×99.36(H) mm, outline size of 154(W)×121(H) mm, viewing area size of 135.5(W)×102.4(H) mm, with surface treament of Hard coating (2H), Antireflection, net weight of 185g (Typ.). As a TN, Normally White, Transmissive LCM product, AA065VE13 can provides 1300 cd/m² display brightness 600:1 transimissive contrast ratio, 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 6/19 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 40% (NTSC). This product adopted 2 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, external backlight driver is additionally needed. AA065VE13 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model	AA065VE13
Brand	Mitsubishi
Diagonal Size	6.5 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	640(RGB)×480 [VGA] 122PPI
Configuration	RGB Vertical Stripe
Active Area	132.48(H)×99.36(V) mm
Outline Dim.	154(H)×121(V) mm
Bezel Area	135.5(H)×102.4(V) mm
Treatment	Hard coating (2H), Antireflection
Luminance	1300 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	6/19 (Typ.)(Tr/Td)
Viewing Angle	80/80/80/60 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K/16.7M 40% NTSC
Light Source	WLED [2 strings] , 100K hours , W/O Driver
Weight	185g (Typ.)
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 6/8-bit) , 20 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C

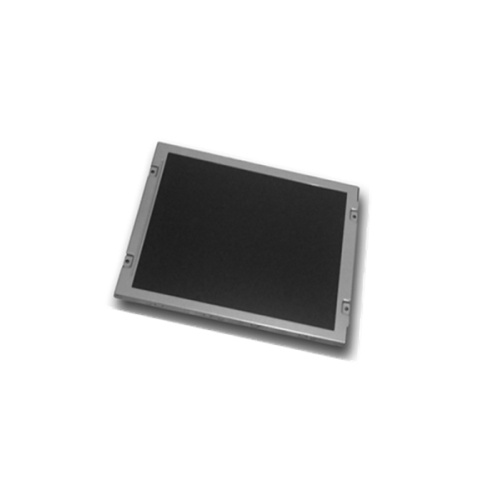

Product Picture:

AA065VE13
