AC043NA11 Mitsubishi 4.3 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AC043NA11 is a 4.3" diagonal a-Si TFT-LCD display panel product from Mitsubishi Electric Corporation (hereafter called Mitsubishi), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C. This Mitsubishi TFT-LCD is a 4.3 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AC043NA11 supports display 480(RGB)×272 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, outline size of 105.5(W)×67.2(H) mm, with surface treament of Antiglare, Hard coating (2H), net weight of 55.0g (Typ.). As a SWV, Normally Black, Transmissive LCM product, AC043NA11 can provides 1000 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 47% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. AC043NA11 utilizes CMOS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 45 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
AC043NA11 |
|
Manufacturer |
Mitsubishi |
|
Screen Size |
4.3 inch |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Pixel Number |
480(RGB)×272 (WQVGA) 128PPI |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
95.04 × 53.856 (H×V) |
|
Outline(mm) |
105.5 × 67.2 (H×V×D) |
|
Treatment |
Antiglare, Hard coating (2H) |
|
Luminance |
1000 cd/m² (Typ.) |
|
Contrast Ratio |
1000 : 1 (Typ.) (TM) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Response |
12/12 (Typ.)(Tr/Td) ms |
|
Good View at |
Symmetry |
|
Work Mode |
SWV, Normally Black, Transmissive |
|
Color Depth |
16.7M 47% NTSC |
|
Backlight |
WLED , 50K hours , No Driver |
|
Mass |
55.0g (Typ.) |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
CMOS (1 ch, 8-bit) , 45 pins FPC |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |

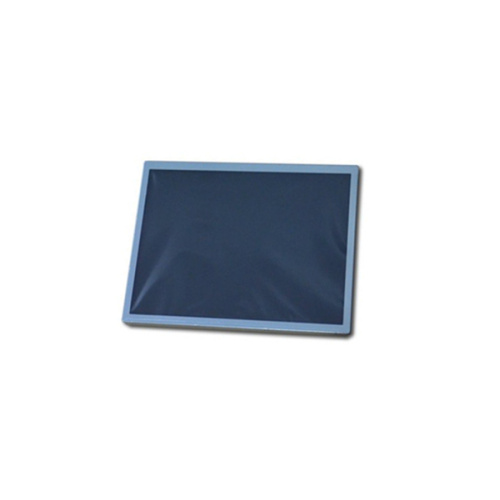

Product Picture:
