AA192AA51 is a 19.2 inch diagonal a-Si TFT-LCD display screen product from Mitsubishi, with a built-in WLED backlight, With LED Driver, without touch screen. This Mitsubishi TFT-LCD is a 19.2 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20120208 which was released out on 2 8 2012, AA192AA51 supports display 1920(RGB)×360 with aspect ratio of >3:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 478.08(W)×89.64(H) mm, outline size of 496(W)×109.2(H) mm, viewing area size of 481.1(W)×92.0(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 780g (Typ.). As a TN, Normally White, Transmissive LCM product, AA192AA51 can provides 650 cd/m² display brightness 700:1 transimissive contrast ratio, 60/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 9 o'clock , and response time of 4/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, With LED Driver. AA192AA51 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
Panel Model
AA192AA51
Panel Brand
Mitsubishi
Panel Size
19.2" (Native bar)
Resolution
1920(RGB)×360, 102PPI
Display Area
478.08(W)×89.64(H) mm
Outline Size
496(W)×109.2(H) mm
Brightness
650 cd/m² (Typ.)
Viewing Angle
60/80/80/80 (Typ.)(CR≥10)
Best View on
9 o'clock
Display Colors
262K/16.7M 50% NTSC
Frequency
60Hz
Weight
780g (Typ.)
Panel Type
a-Si TFT-LCD , LCM
Pixel Format
RGB Vertical Stripe
Bezel Opening
481.1(W)×92.0(H) mm
Surface
Antiglare, Hard coating (3H)
Contrast Ratio
700:1 (Typ.) (TM)
Display Mode
TN, Normally White, Transmissive
Response Time
4/12 (Typ.)(Tr/Td)
Lamp Type
WLED , 100K hours , With LED Driver
Touch Screen
Without
Signal Interface
LVDS (1 ch, 6/8-bit) , 20 pins Connector
Input Voltage
3.3V (Typ.)
Environment
Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C

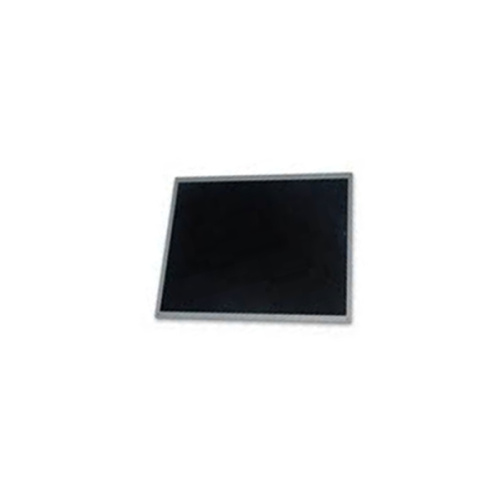

Product Picture:
