AA150PD13 Mitsubishi 15.0 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,SHENZHEN

Product Description

Mitsubishi Electric Corporation (hereafter called Mitsubishi) AA150PD13 is a 15.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Mitsubishi TFT-LCD is a 15.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20141113 which was released out on 11 13 2014, AA150PD13 supports display 1400(RGB)×1050 (SXGA+) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.5(W)×228.375(H) mm, outline size of 326(W)×255(H)×11(D) mm, viewing area size of 308.1(W)×232.1(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 900g (Typ.). As a SWV, Normally Black, Transmissive LCM product, AA150PD13 can provides 1000 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 5 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, external backlight driver is additionally needed. AA150PD13 utilizes LVDS (2 ch, 6/8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model	AA150PD13
Panel Brand	Mitsubishi
Panel Size	15.0"
Resolution	1400(RGB)×1050, SXGA+, 116PPI
Display Area	304.5(W)×228.375(H) mm
Outline Size	326(W)×255(H) ×11(D) mm
Brightness	1000 cd/m² (Typ.)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	262K/16.7M 50% NTSC
Frequency	60Hz
Weight	900g (Typ.)
Panel Type	a-Si TFT-LCD , LCM
Pixel Format	RGB Vertical Stripe
Bezel Opening	308.1(W)×232.1(H) mm
Surface	Antiglare, Hard coating (3H)
Contrast Ratio	1000:1 (Typ.) (TM)
Display Mode	SWV, Normally Black, Transmissive
Response Time	12/12 (Typ.)(Tr/Td)
Lamp Type	5 strings WLED , 100K hours , Without Driver
Touch Screen	Without
Signal Interface	LVDS (2 ch, 6/8-bit) , 30 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C

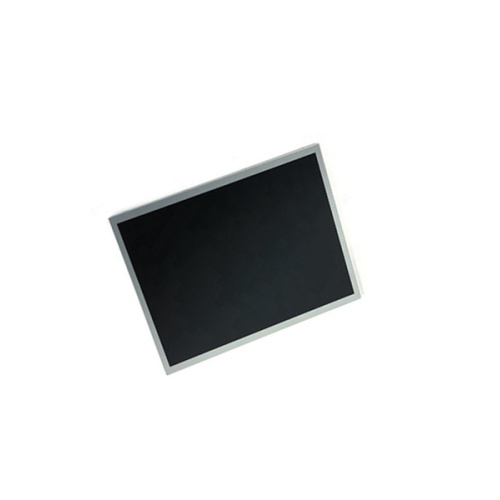

Product Picture:

AA150PD13
