AA121XP01 Mitsubishi 12.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Mitsubishi Electric Corporation (hereafter called Mitsubishi) AA121XP01 is a 12.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This Mitsubishi TFT-LCD is a 12.1 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20141009 which was released out on 10 9 2014, AA121XP01 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 245.76(W)×184.32(H) mm, outline size of 260.5(W)×203(H)×10(D) mm, viewing area size of 249.0(W)×187.5(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 600g (Typ.). As a SWV, Normally Black, Transmissive LCM product, AA121XP01 can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, With LED Driver. AA121XP01 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
AA121XP01 |
|
Manufacturer |
Mitsubishi |
|
Screen Size |
12.1 inch |
|
Pixel Number |
1024(RGB)×768 (XGA) 105PPI |
|
Active Area(mm) |
245.76 × 184.32 (H×V) |
|
Bezel Area(mm) |
249.0 × 187.5 (H×V) |
|
Luminance |
500 (Typ.)(cd/m²) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Good View at |
Symmetry |
|
Color Depth |
262K/16.7M 72% NTSC |
|
Mass |
600g (Typ.) |
|
Refresh Rate |
60Hz |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Arrangement |
RGB Vertical Stripe |
|
Outline(mm) |
260.5 × 203 × 10 (H×V×D) |
|
Treatment |
Antiglare, Hard coating (3H) |
|
Contrast Ratio |
1000 : 1 (Typ.) (TM) |
|
Work Mode |
SWV, Normally Black, Transmissive |
|
Response |
12/12 (Typ.)(Tr/Td) ms |
|
Backlight |
WLED , 100K hours , With LED Driver |
|
Touchscreen |
Without |
|
Signal Type |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |

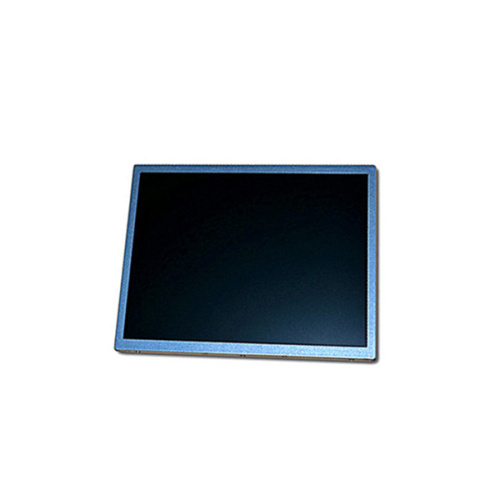

Product Picture:
