AA050MH01 Mitsubishi 5.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Mitsubishi Electric Corporation (hereafter called Mitsubishi) AA050MH01 is a 5.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Mitsubishi TFT-LCD is a 5.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20180418 which was released out on 4 18 2018, AA050MH01 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 108(W)×64.8(H) mm, outline size of 118.5(W)×77.8(H)×5.7(D) mm, viewing area size of 110.0(W)×66.8(H) mm, with surface treament of Clear, Hard coating (2H), net weight of 76.0g. As a SWV, Normally Black, Transmissive LCM product, AA050MH01 can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 2 strings WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. AA050MH01 utilizes CMOS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 45 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AA050MH01 |
|
Panel Brand |
Mitsubishi |
|
Panel Size |
5.0" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
800(RGB)×480, WVGA, 188PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
108(W)×64.8(H) mm |
|
Bezel Opening |
110.0(W)×66.8(H) mm |
|
Outline Size |
118.5(W)×77.8(H) ×5.7(D) mm |
|
Surface |
Clear, Hard coating (2H) |
|
Brightness |
500 cd/m² (Typ.) |
|
Contrast Ratio |
1000:1 (Typ.) (TM) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Display Mode |
SWV, Normally Black, Transmissive |
|
Best View on |
Symmetry |
|
Response Time |
12/12 (Typ.)(Tr/Td) |
|
Display Colors |
16.7M 50% NTSC |
|
Lamp Type |
2 strings WLED , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Panel Weight |
76.0g |
|
Signal Interface |
CMOS (1 ch, 8-bit) , 45 pins FPC |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |

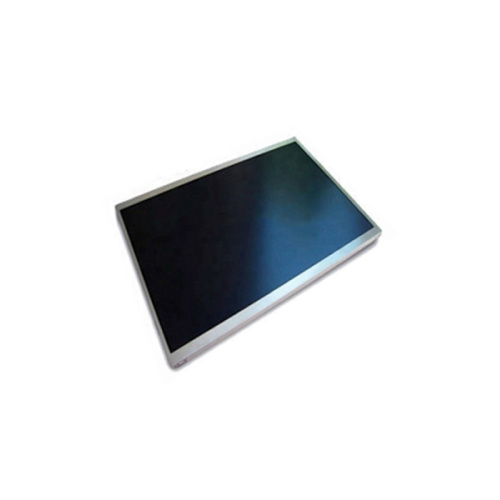

Product Picture:
