AA084SB11 Mitsubishi 8.4 inch TFT-LCD

Mitsubishi Electric Corporation (hereafter called Mitsubishi) AA084SB11 (Alias: T-55466D084J-LW-A-ACN) is a 8.4 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C. This  Mitsubishi TFT-LCD is a 8.4 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen.AA084SB11 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.4(W)×127.8(H) mm, outline size of 199.5(W)×149(H)×12(D) mm, viewing area size of 174.9(W)×132.2(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 365g (Typ.). As a TN, Normally White, Transmissive LCM product, AA084SB11 can provides 1200 cd/m² display brightness 600:1 transimissive contrast ratio, 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 4/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 40% (NTSC). This product adopted 2 strings WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 100K hours, external backlight driver is additionally needed. AA084SB11 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

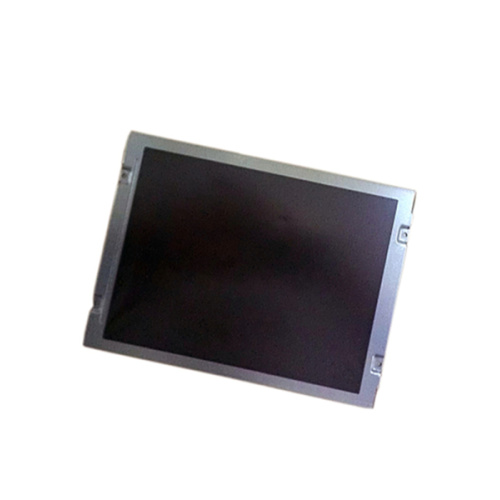

Product Picture:
